Oil Pressure Sensor: Service and Repair

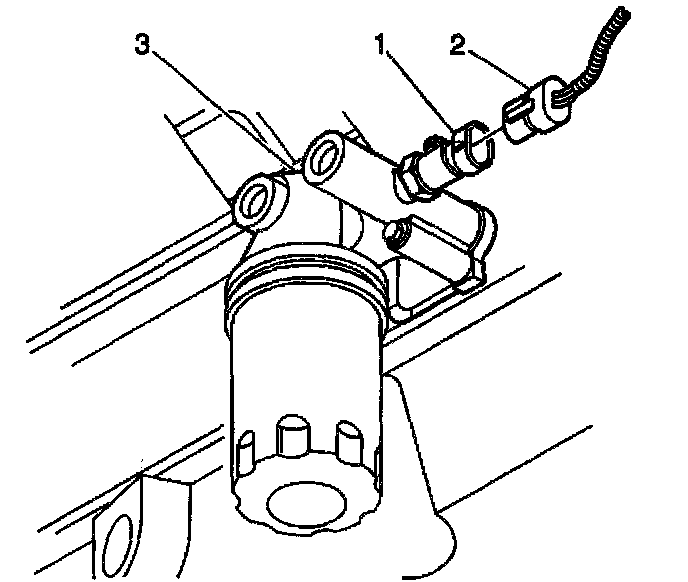

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Disconnect the electrical connector (2) from the oil pressure switch (1).
3. Remove the oil pressure switch (1) from the oil filter adapter (3).

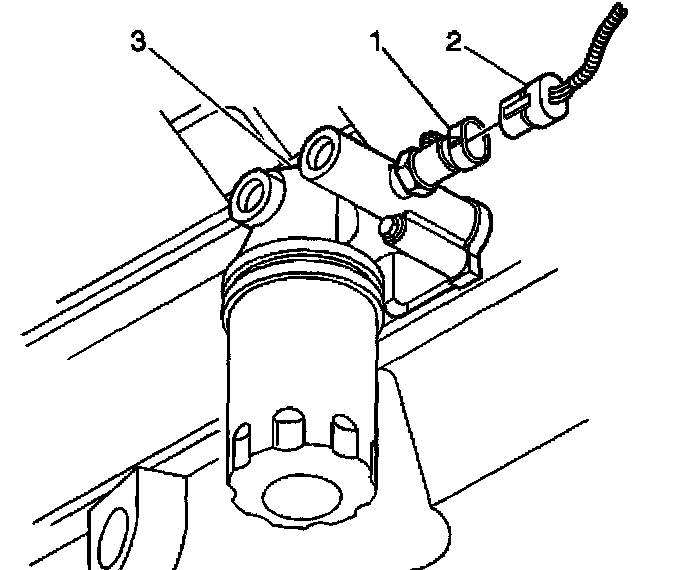

Installation Procedure





1. Install the oil pressure switch (1) to the oil filter adapter (3).
2. Connect the electrical connector (2) into the oil pressure switch (1).
3. Lower the vehicle.
