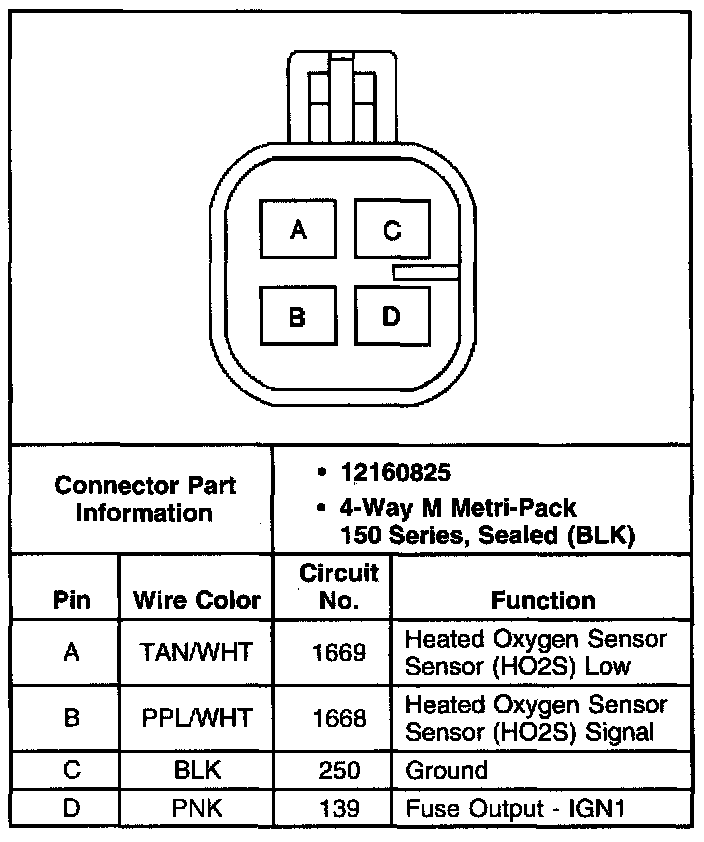

Post-Converter Heated Oxygen Sensor (HO2S)
Post-Converter Heated Oxygen Sensor (HO2S)
Post-Converter Heated Oxygen Sensor (HO2S):
