Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

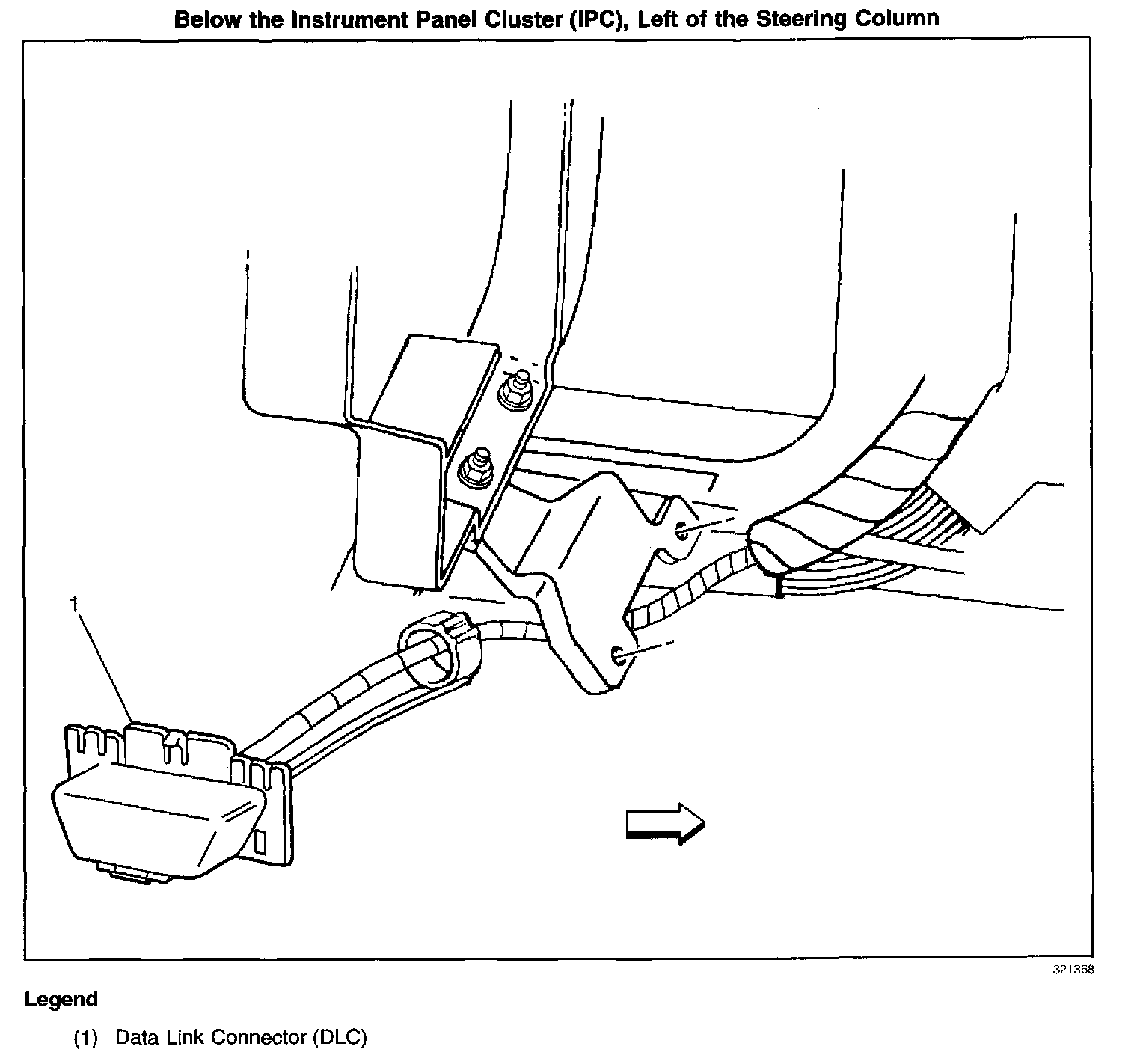

Data Link Connector: Locations

Locations View:





Under the left side of the IP, on the hood release bracket
