Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Lighting and Horns >> Marker Lamp >> Diagrams >> Side Marker Lamp (KSP), Rear

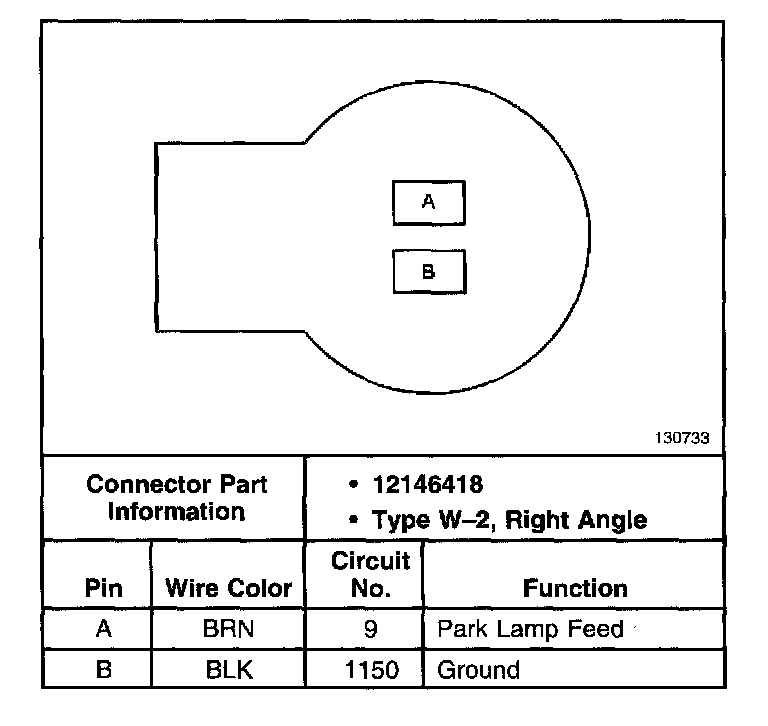

Side Marker Lamp (KSP), Rear

Rear Side Marker Lamp (KSP):
