Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Diagrams >> Electrical Diagrams >> Two Note

Two Note

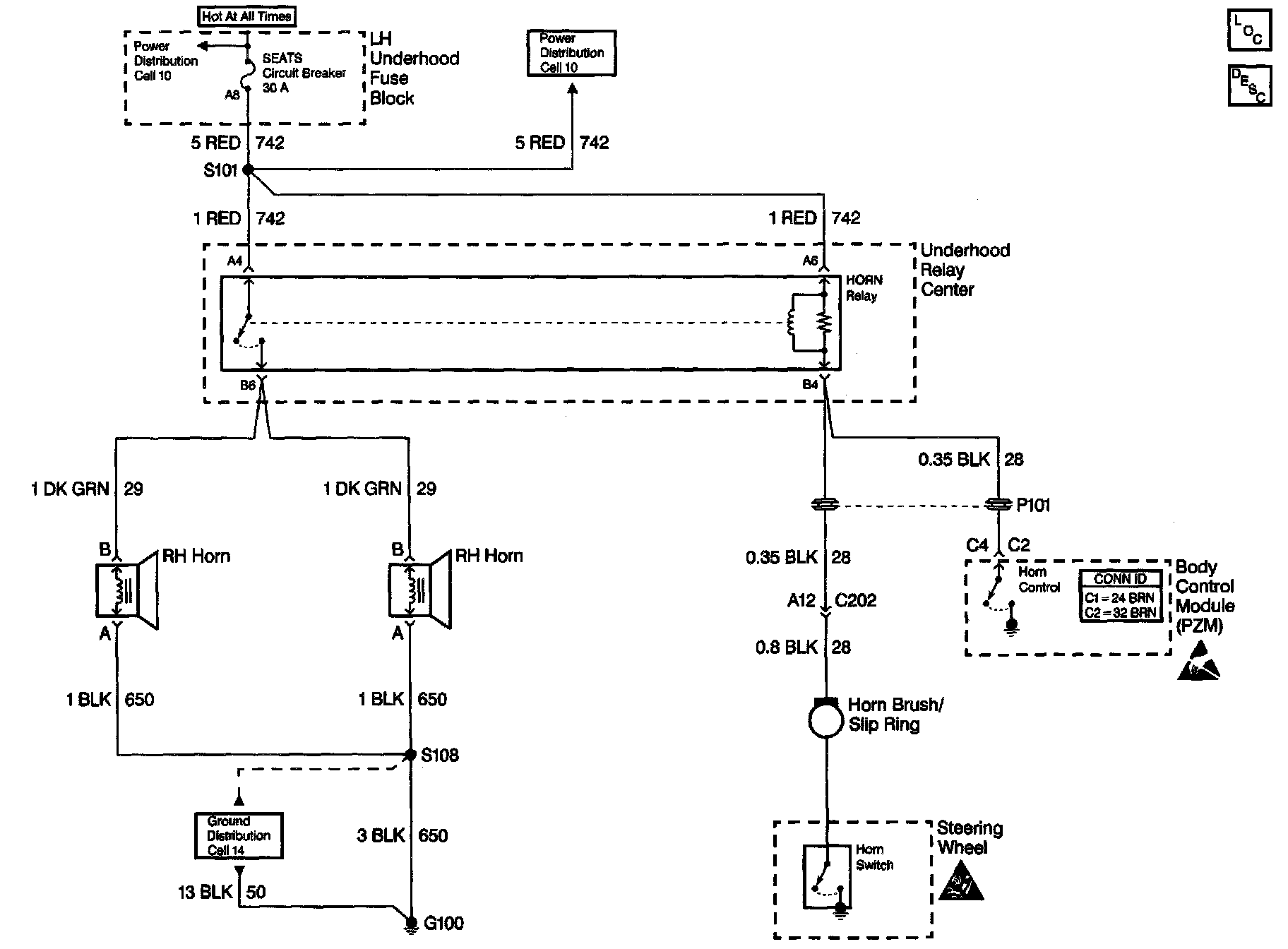

Horn Schematics: Two Note:
