Fog/Driving Lamp: Service and Repair

REMOVAL PROCEDURE
1. Disconnect the fog lamp socket connector.

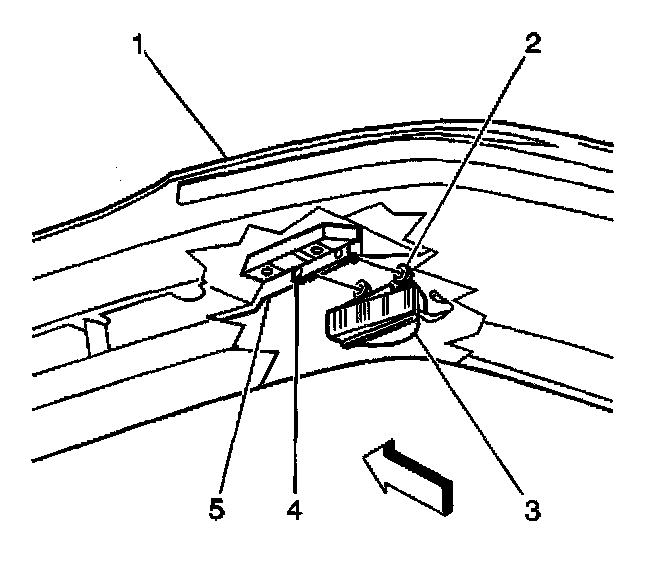

2. Remove the nuts (2) retaining the fog lamp (3) to the impact bar (5).
3. Remove the tog lamp (3) from the vehicle.

INSTALLATION PROCEDURE
1. Install the fog lamp (3) to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the nuts (2) in order to retain the tog lamp (3).

Tighten
Tighten the nuts to 6 N.m (53 lb in).

3. Connect the fog lamp socket connector.
