Door Courtesy, IP Compartment And Rear Compartment Lamps

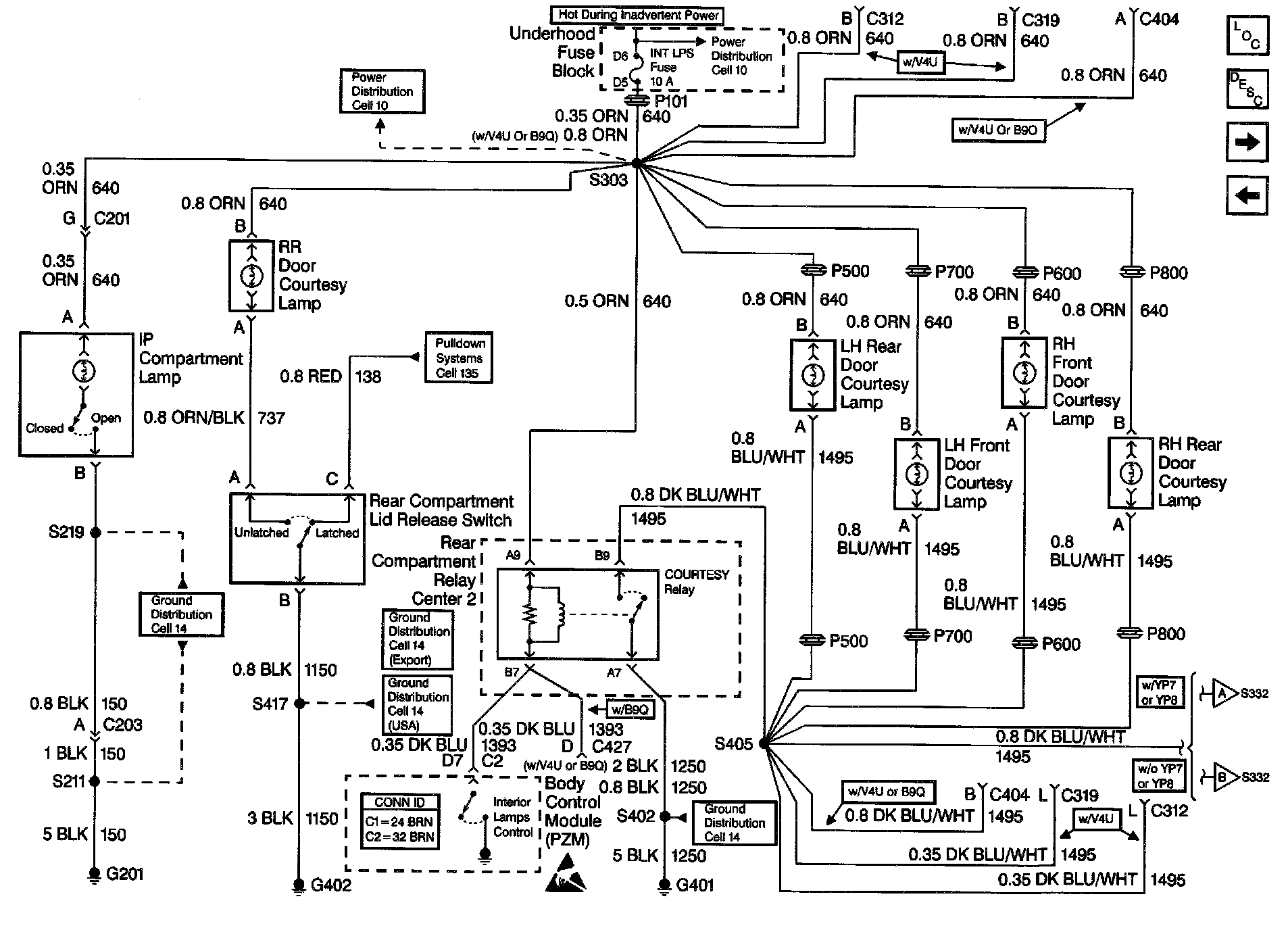

Interior Lights Schematics (DeVille): Door Courtesy, IP Compartment & Rear Compartment Lamps:
