Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Dimming Schematics >> PWR, GND And Ambient Light Sensor

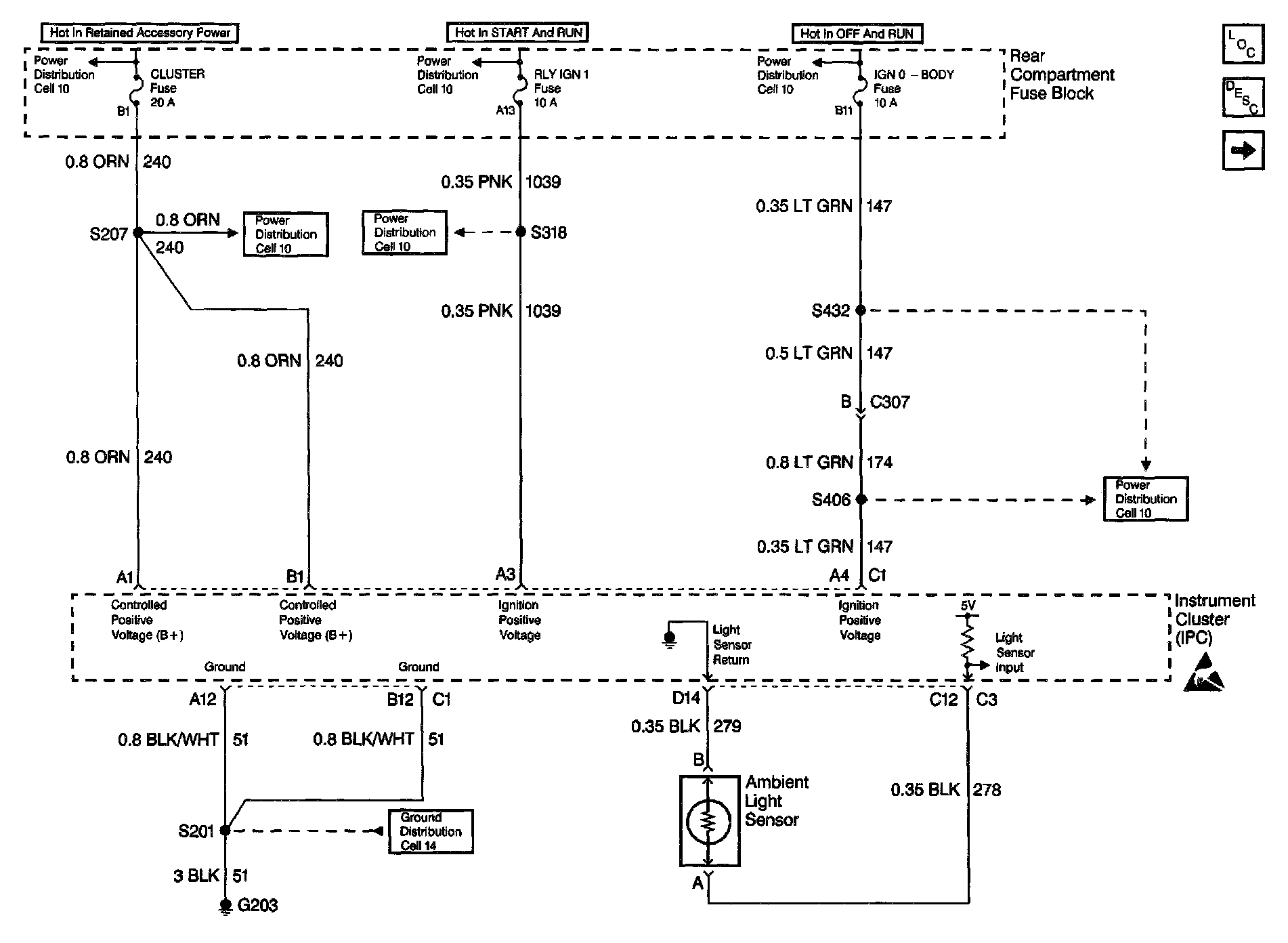

PWR, GND And Ambient Light Sensor

Interior Lights Dimming Schematics: PWR, GND And Ambient Light Sensor:
