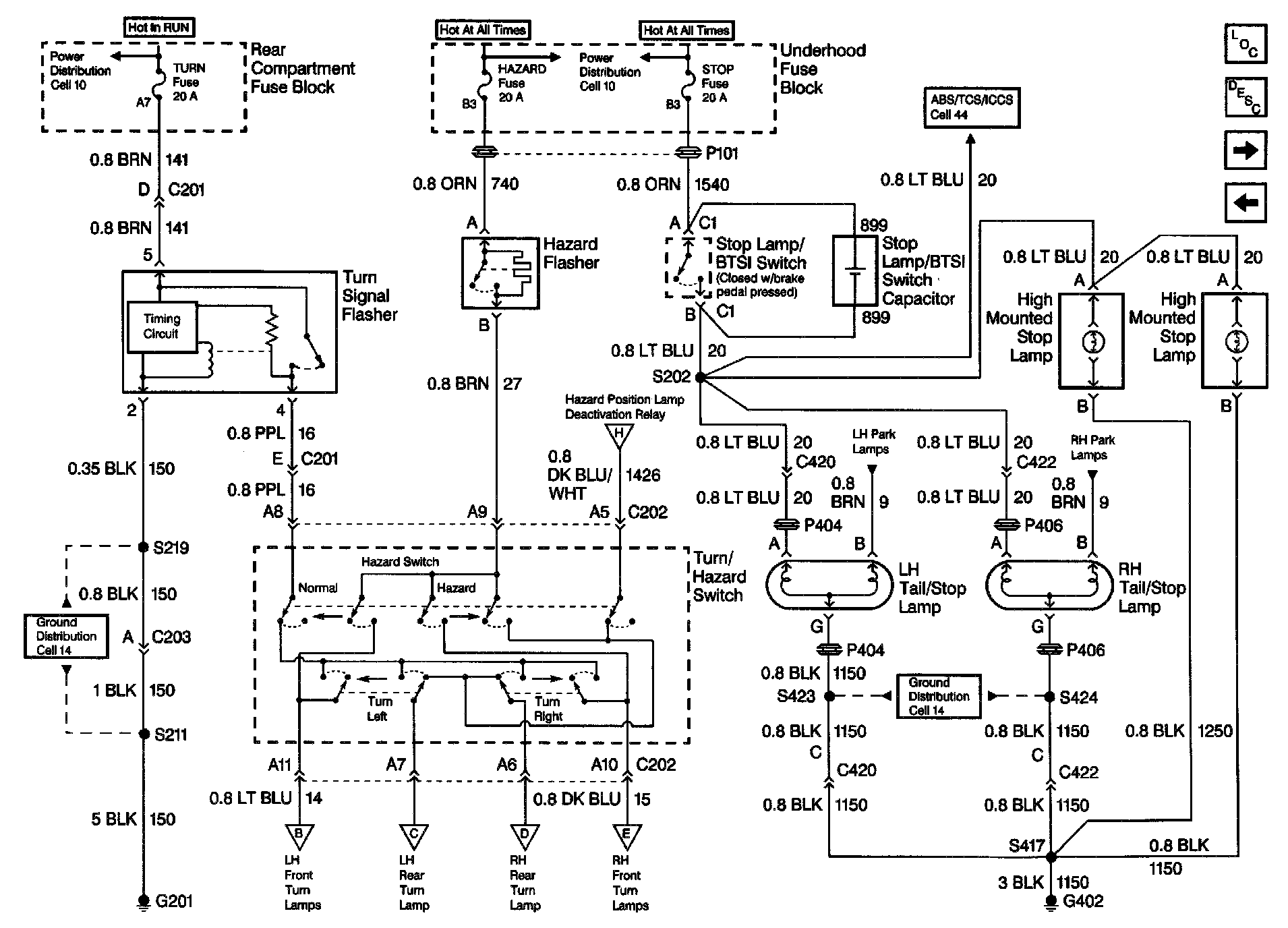

Turn Signal Flasher, Hazard Flasher And Stoplamp/BTSI Switch

Exterior Lights Schematics (DeVille Export): Turn Signal Flasher, Hazard Flasher And Stoplamp/BTSI Switch:
