Headlamp Switch and Park Lamp Control

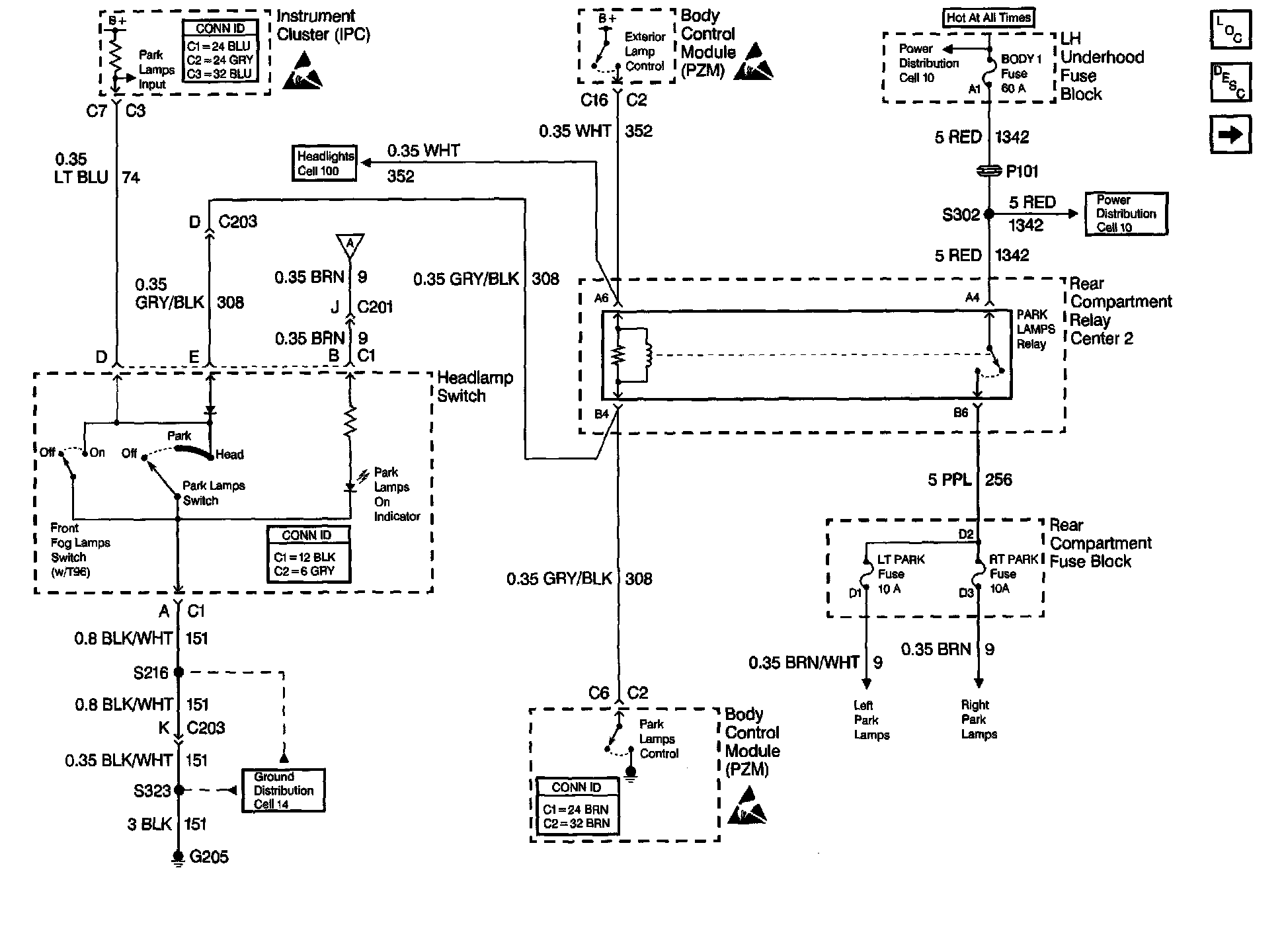

Exterior Lights Schematics (DeVille Export): Headlamp Switch And Park Lamp Control:
