Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Exterior Lights >> Cornering Lights

Cornering Lights

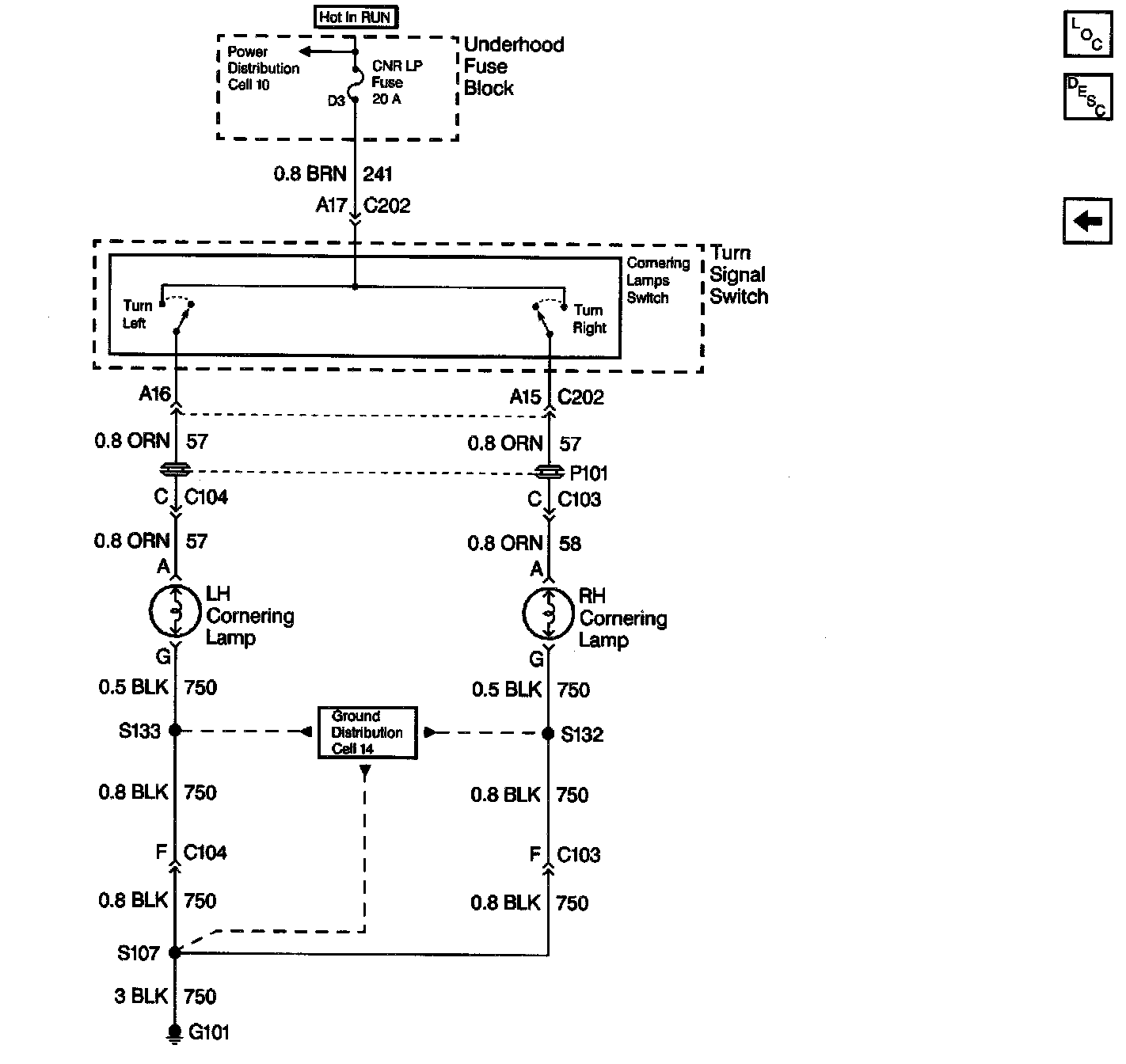

Exterior Lights Schematics (DeVille USA): Cornering Lamps:
