Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Door Lamp >> Diagrams >> Door Courtesy Lamp, Left Front

Door Courtesy Lamp, Left Front

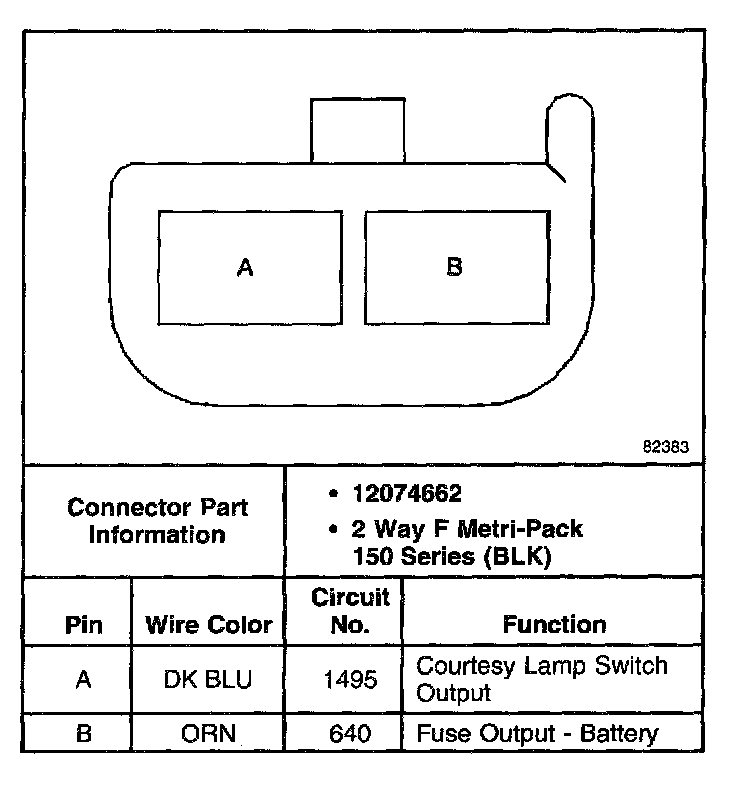

Left Front Door Courtesy Lamp:
