Diagnostic System Check - Instrument Panel Cluster
Diagnostic System Check - Instrument Panel Cluster

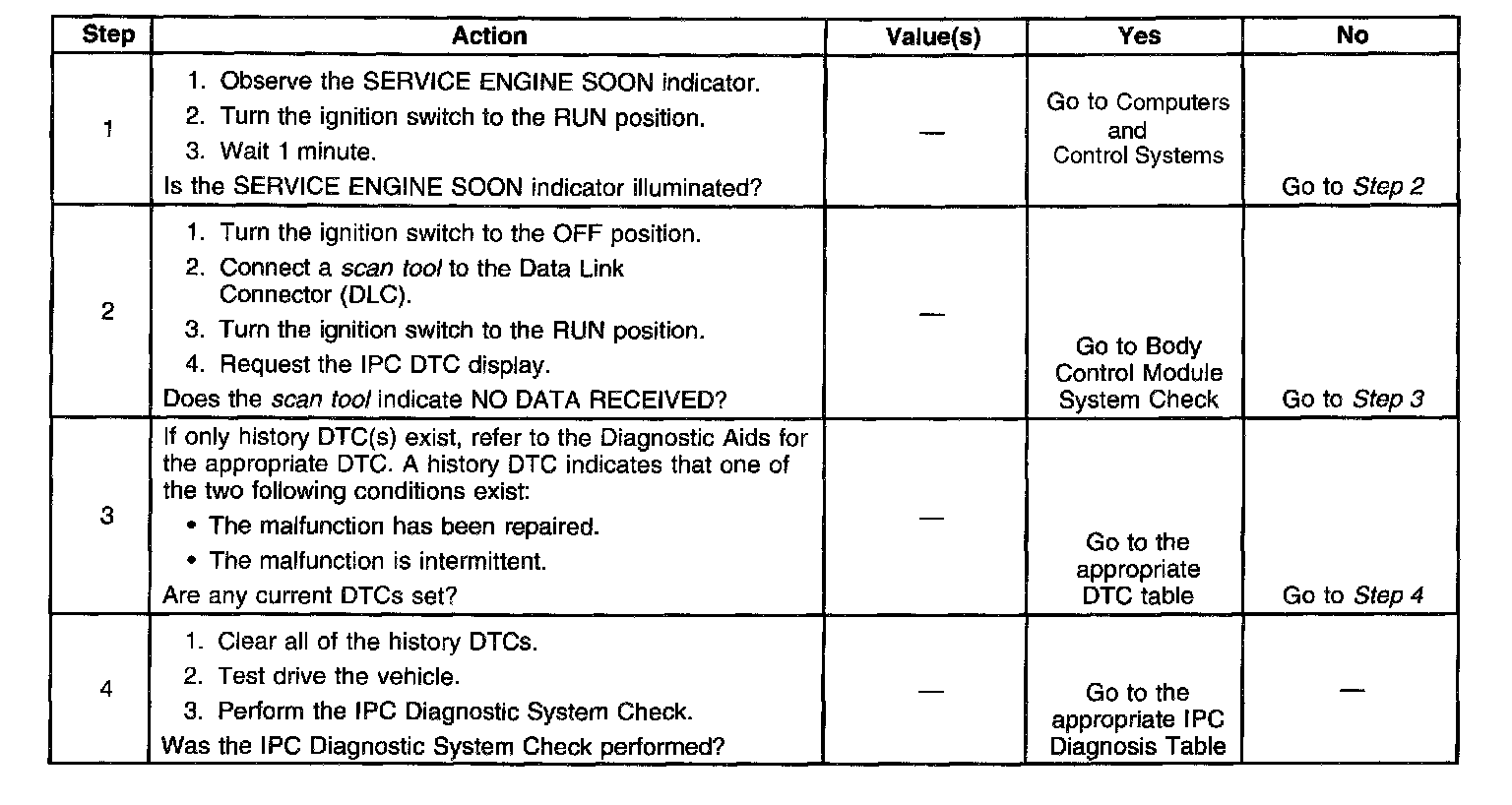

A Diagnostic System Check - Instrument Cluster:
