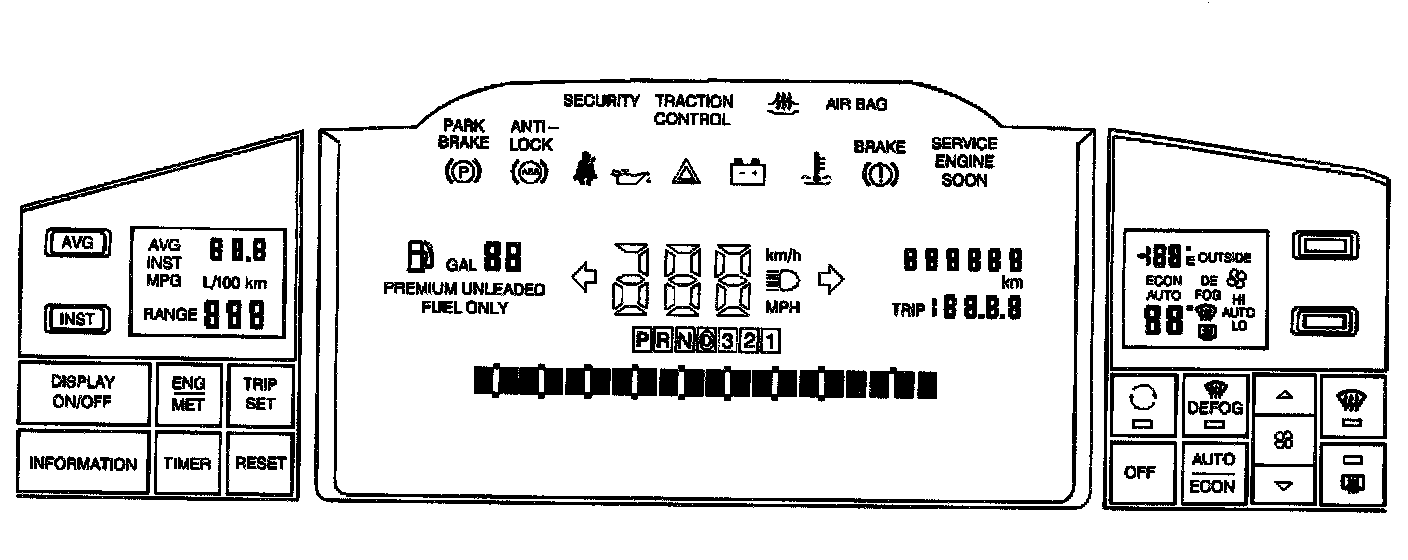

Digital Instrument Cluster

The digital IPC provides numeric readouts for the following functions:
^ The vehicle speedometer
^ The season odometer
^ The trip odometer
^ The fuel level center portion of the IPC the following components are located within the center portion of the IPC:
^ The PRNDL display
^ The indicators
^ The driver message center

The driver message center displays various warning and status messages to the driver and the technician. The following are located on the left side of the IPC:
^ The fuel data center
^ The Driver Information Center (DIC) buttons The following are located on the right side of the IPC:
^ The CCC display
^ The heater and A/C system control buttons
