Analog Instrument Cluster

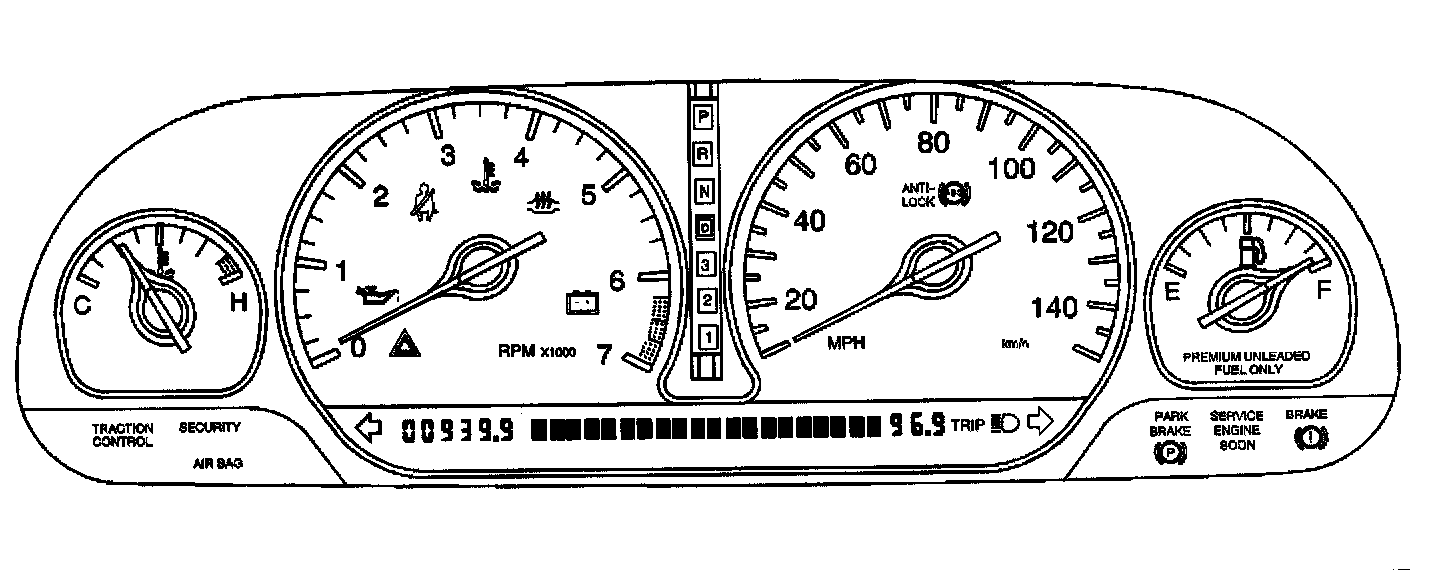

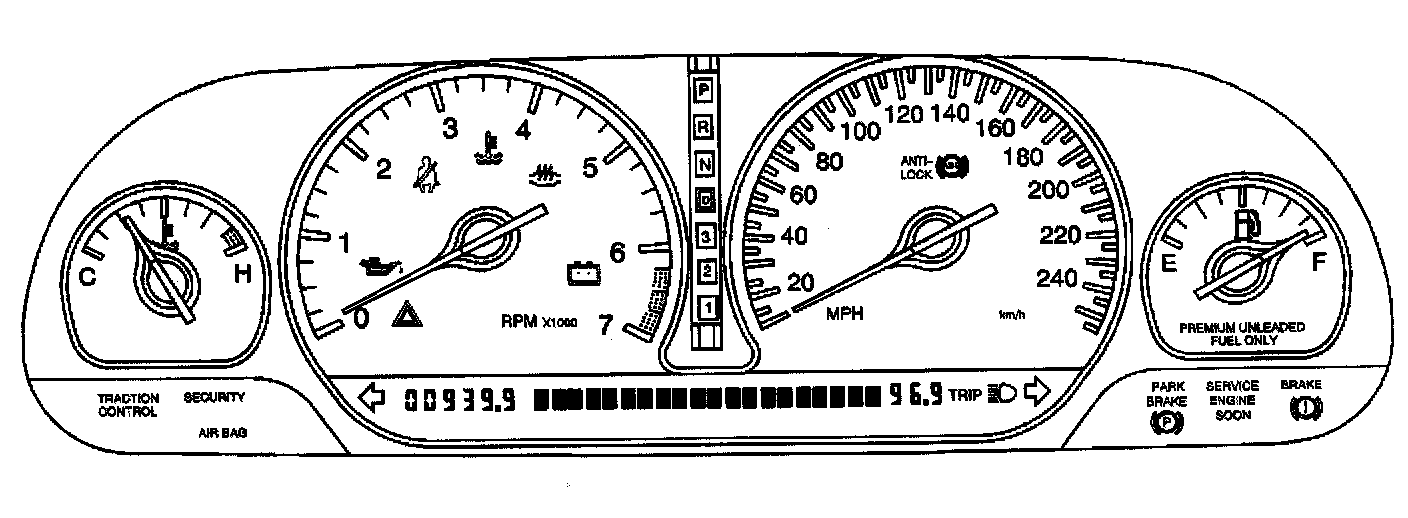

The analog instrument cluster is available in the following 2 models:




^ Domestic




^ Canada/Export

The analog gauge package provides swing needle readouts for the following items:
^ The vehicle speed
^ The coolant temperature
^ The fuel level
^ The engine RPM

A driver message center is located within the IPC for displaying various warning and status messages. Since no button controls are located on the analog IPC, a separate Climate Control Panel (CCP) is provided for controlling the heater and A/C system. a separate driver information center that controls the driver message center.
