Muffler Replacement (Left)

Removal Procedure





1. Raise the vehicle. Refer to Vehicle Lifting.
2. Support the intermediate pipe.

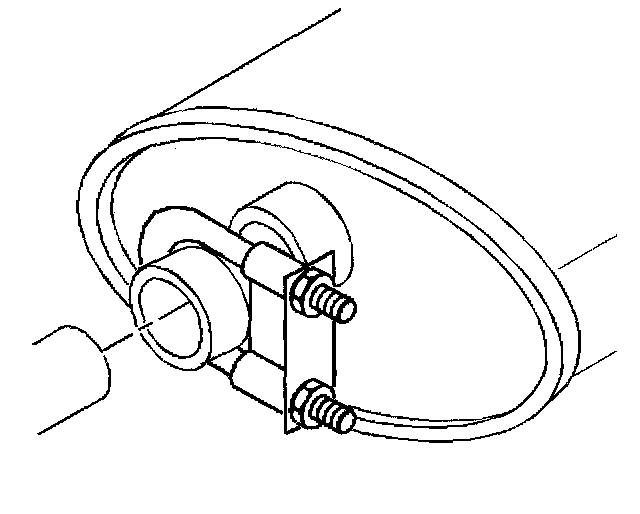

3. Remove the left-side U-bolt clamp.

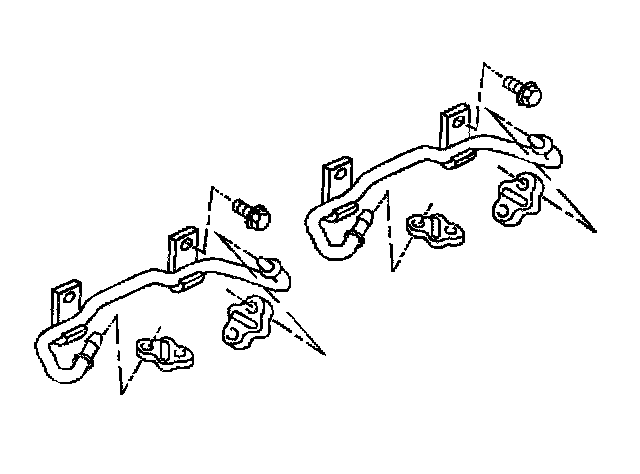

4. Remove the muffler hanger and the muffler/tailpipe assembly.

Installation Procedure

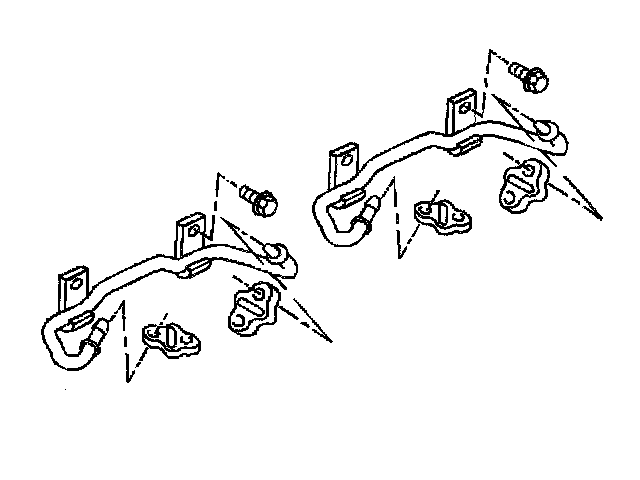

1. Install the muffler and the hanger.





2. Connect the muffler to the intermediate pipe.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the left-side muffler U-bolt clamp.

- Tighten the clamp nuts to 55 Nm (41 ft. lbs.).
