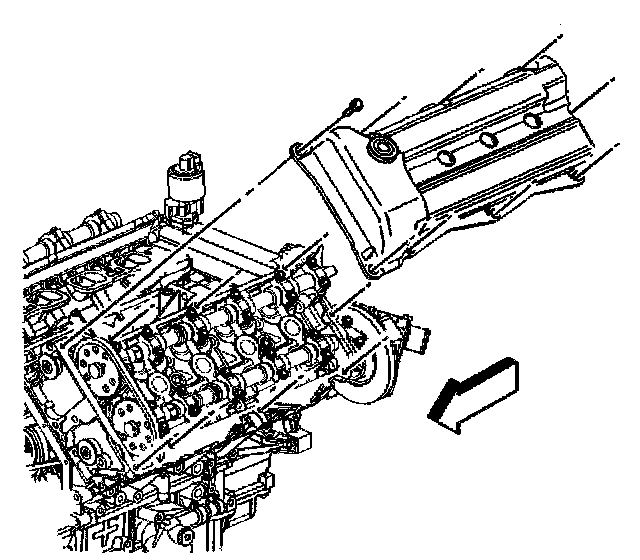

77. Camshaft Cover Installation - Right

1. Install new camshaft cover seals if required.
2. Place the right camshaft cover in position on the cylinder head by aligning the bolt holes.

Notice: Refer to Fastener Notice in Service Precautions.

3. Tighten the camshaft cover bolts.
- Tighten the camshaft cover bolts to 10 Nm (89 lb in).
