75. Crankshaft Balancer Installation

- Tools Required
- J 41998-B Crankshaft Balancer Installer
- J 36660 Torque Angle Meter

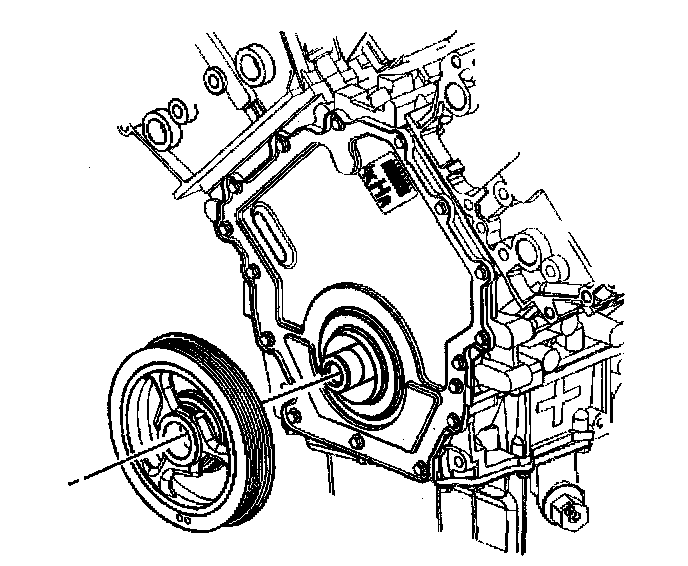

1. Position the crankshaft balancer on the nose of the crankshaft.

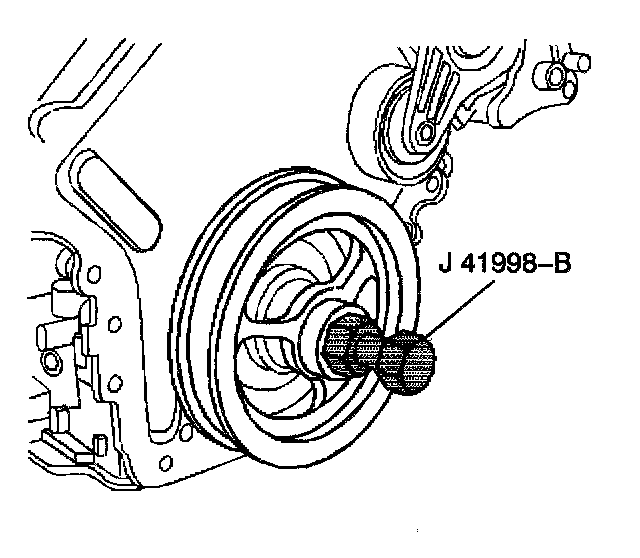

2. Press the crankshaft balancer in place using the J 41998-8.





3. Clean the crankshaft balancer bolt threads.
4. Apply engine oil to the crankshaft balancer bolt threads.

Notice: Refer to Fastener Notice in Service Precautions.

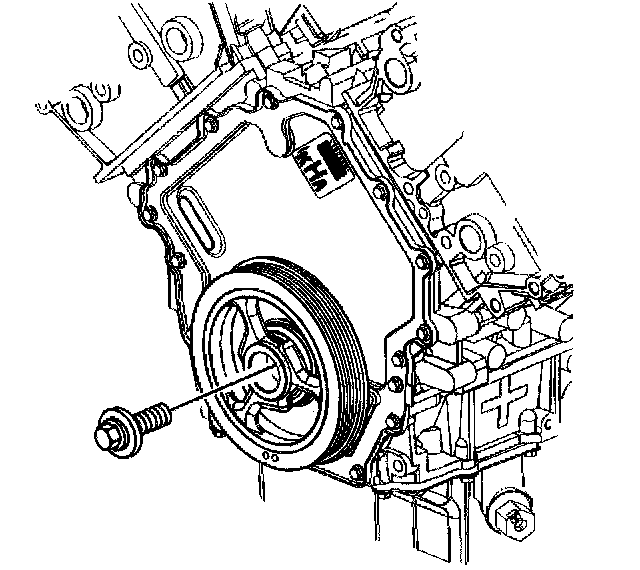

5. Install the crankshaft balancer bolt.
5.1. First Pass
- Tighten the crankshaft balancer bolt to 50 Nm (37 lb ft).
5.2. Final Pass
- Tighten the crankshaft balancer bolt an additional 150 degrees using the J 36660.
