Oil Pump Pipe and Screen Assembly Replacement

Removal Procedure





1. Remove the transmission assembly. Refer to Transmission Replacement in Transmission and Drivetrain.
2. Remove the exhaust crossover pipe.
3. Remove the engine oil pan.

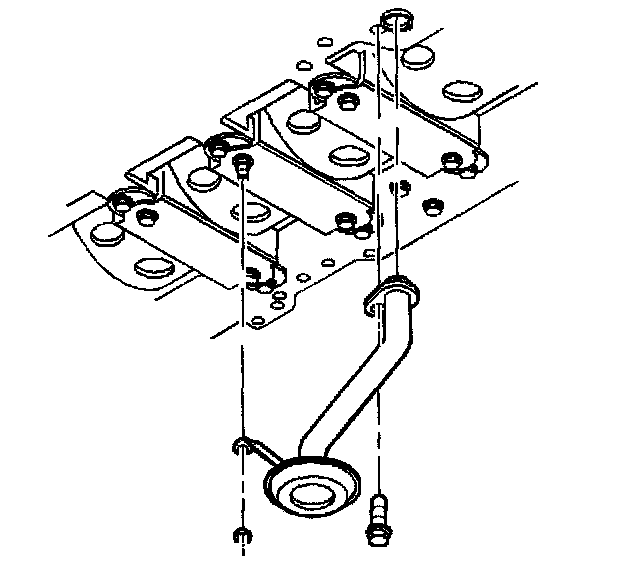

4. Remove the support nut and the mounting bolt and remove the pickup pipe.

Installation Procedure





1. Lubricate the suction pipe seal, located in the oil manifold, with the engine oil and insert the pickup tube.

Notice: Refer to Fastener Notice in Service Precautions.

2. Position the pipe to the crankcase and install the mounting bolt and the support nut.
- Tighten the mounting bolt to 10 Nm (89 inch lbs.).
- Tighten the support nut 25 Nm (18 ft. lbs.).
3. Install the oil pan.
4. Install the exhaust crossover pipe.
5. Install the transmission assembly.
