Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

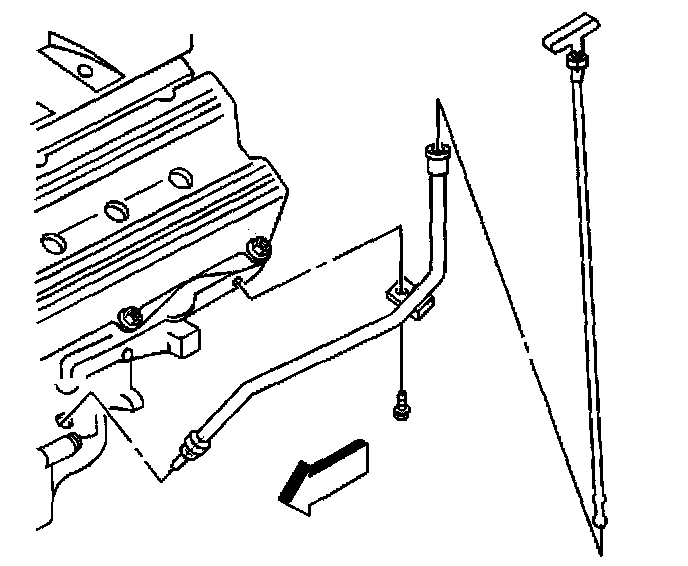

Removal Procedures





1. Remove the oil level indicator.
2. Remove the oil level indicator tube fastener.
3. Pull the oil level indicator tube from the crankcase.

Installation Procedure





1. Replace the oil level indicator tube O-ring.
2. Install the oil level indictor tube.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the oil level indicator tube fastener.
- Tighten the fastener to 10 Nm (89 inch lbs.).
4. Install the oil level indicator.
