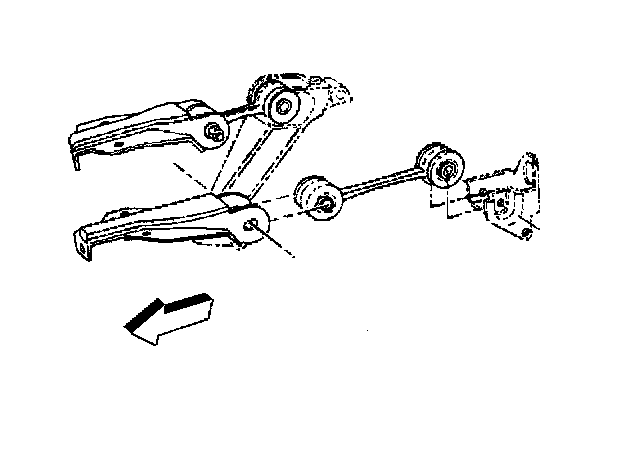

Engine Torque Strut: Service and Repair

1. Engine torque struts can be removed in order to provide access for various other service operations.
2. Remove any fasteners which seem logical for the service being performed.

Important: Ensure that the torque struts are not preloaded in their installed position.

3. Adjustment is provided at the point the strut fastens to the core support bracket. Ensure that this bolt is loose during assembly.

Notice: Refer to Fastener Notice in Service Precautions.

- Tighten to 60 Nm (44 ft. lbs.) as the final step of the assembly.
