Coolant Heater Replacement (Front)

Removal Procedure





1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the front air deflector.

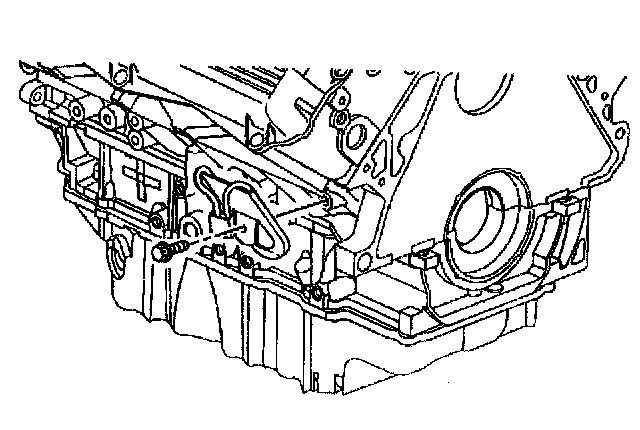

3. Disconnect the electrical connector at the engine block heater.
4. Drain the coolant.
5. Remove the coolant heater retaining bolt.
6. Remove the coolant heater.

Installation Procedure





1. Install the coolant heater.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the coolant heater retaining bolt.
- Tighten the coolant heater bolt to 9 Nm (80 inch lbs.).
3. Connect the electrical connector to the coolant heater.
4. Install the front air deflector.
5. Lower the vehicle.
6. Refill the engine coolant.
