S202
S202

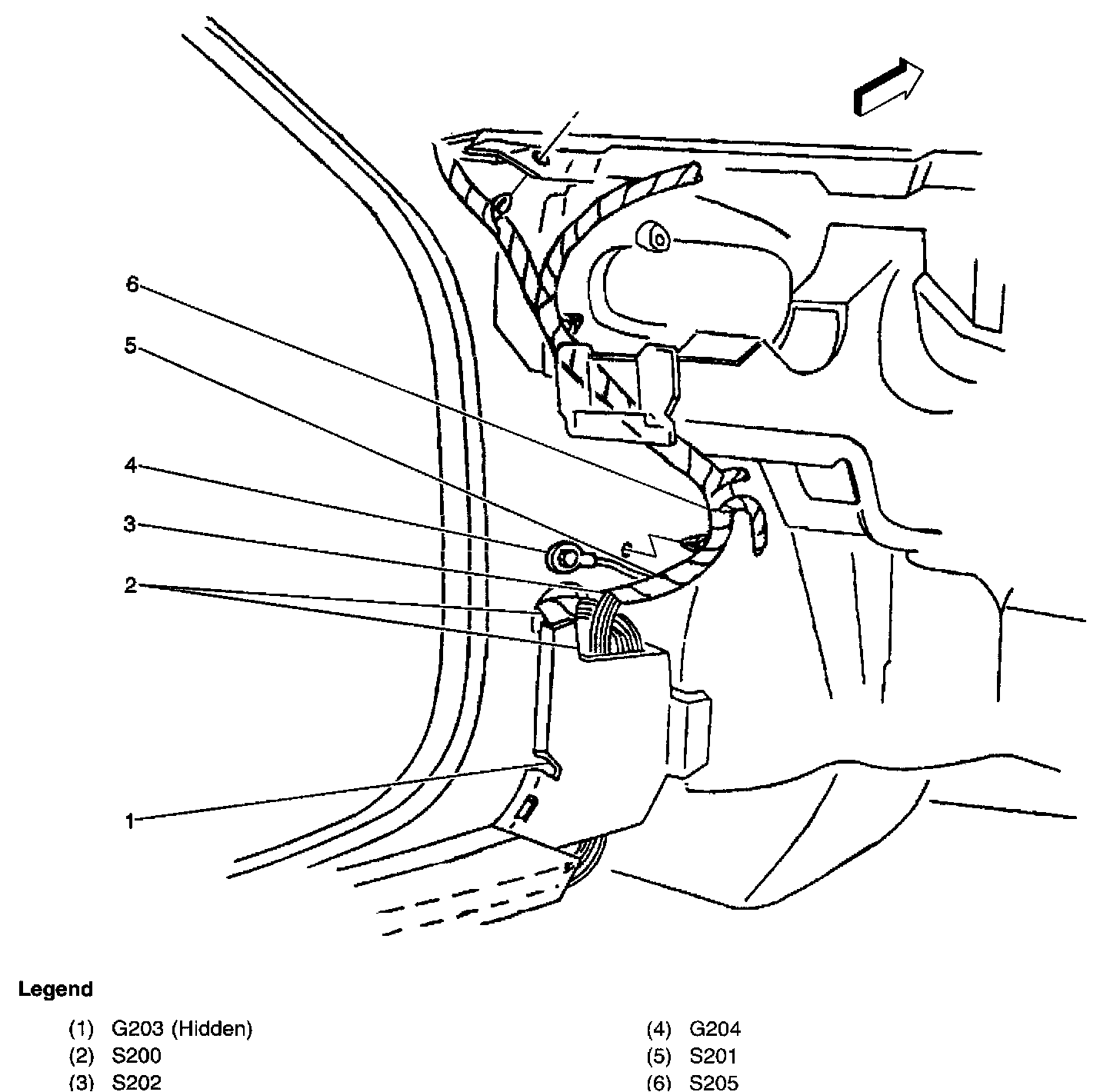

Instrument Panel, Below the Left Side:
In the body harness, approximately 5.5 cm (2.17 in) from the G204 breakout
