S106
S106

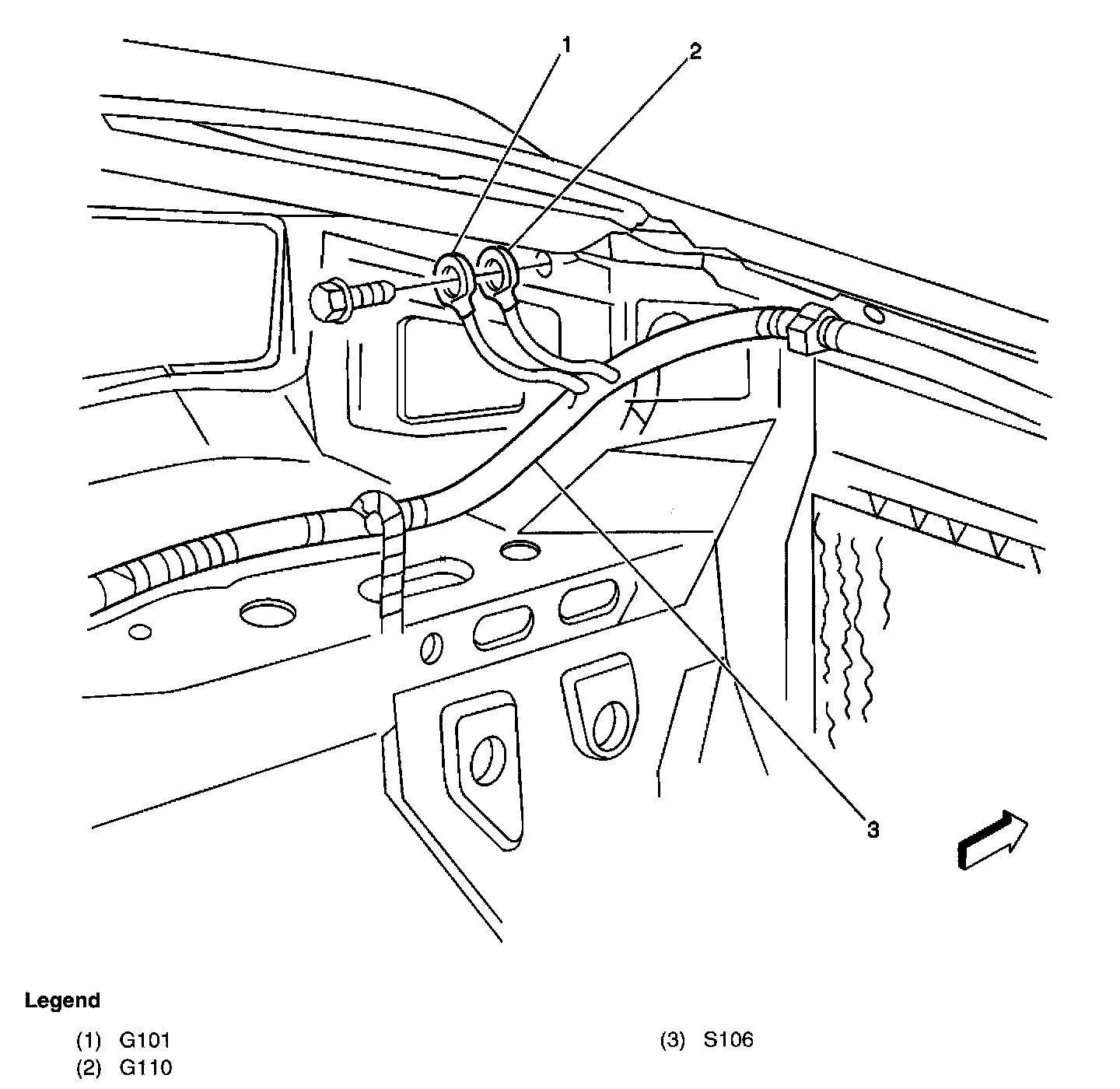

Engine Compartment, Left Front:
In the body harness, approximately 6.5 cm (2.56 in) from the C104 breakout
