Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram >> Parking Pawl, Actuator Assembly and Manual Shaft

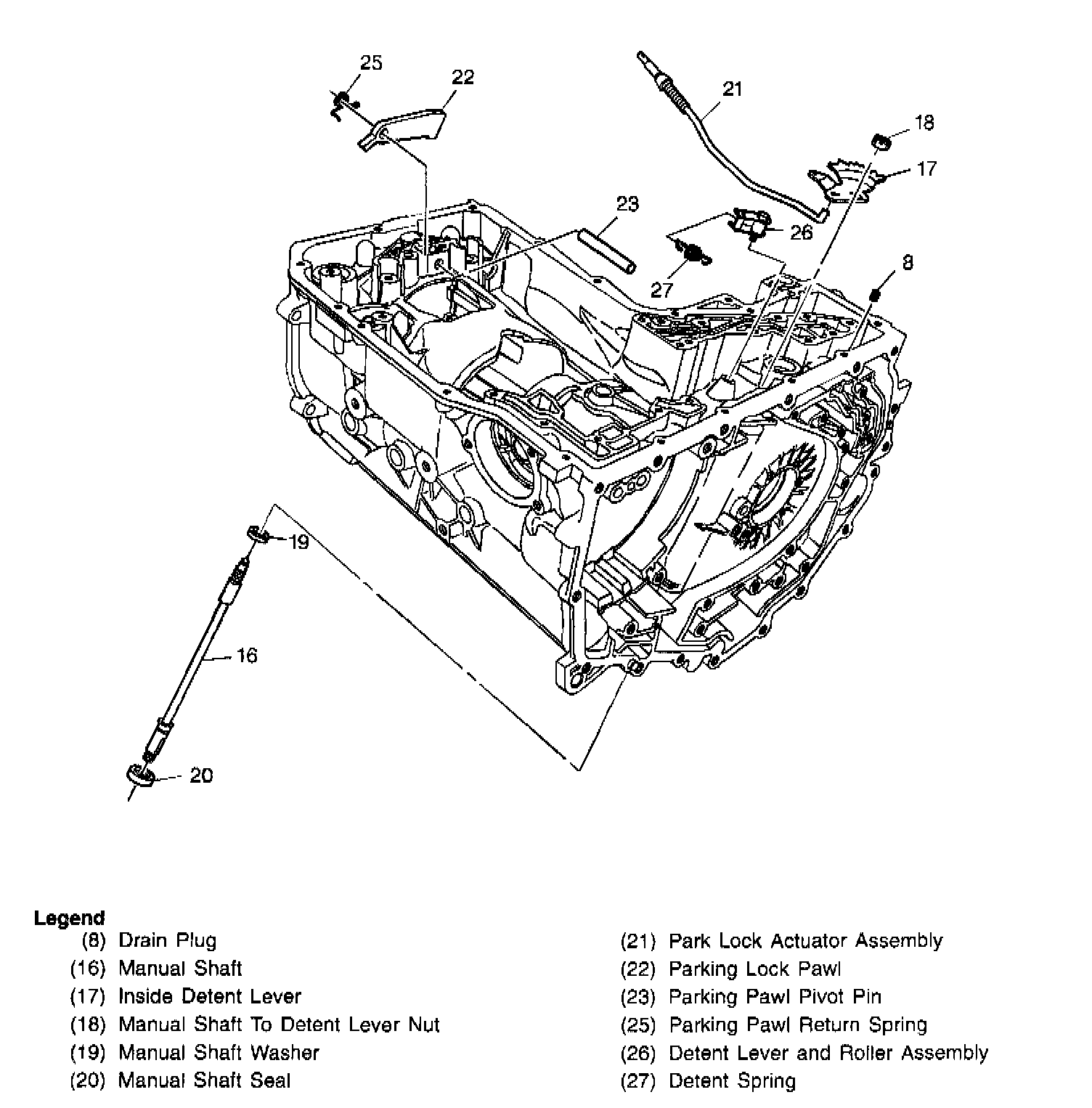

Parking Pawl, Actuator Assembly and Manual Shaft
