Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram >> Lower Channel Plate, Cntrl Valve Bdy and Accm. Housing Assembly

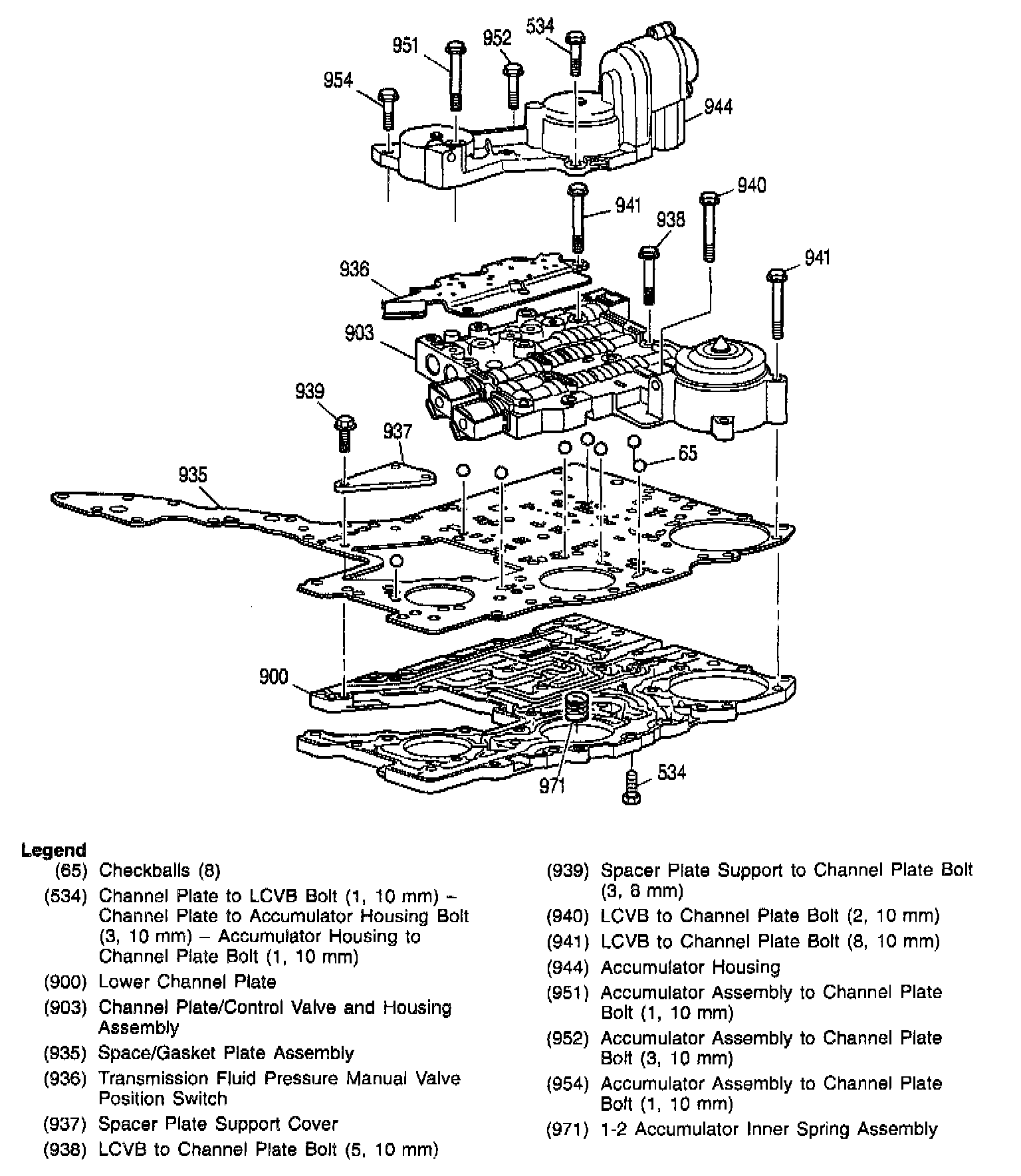

Lower Channel Plate, Cntrl Valve Bdy and Accm. Housing Assembly
