Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Shift Interlock Solenoid >> Cell 138: Shift Interlock Actuator

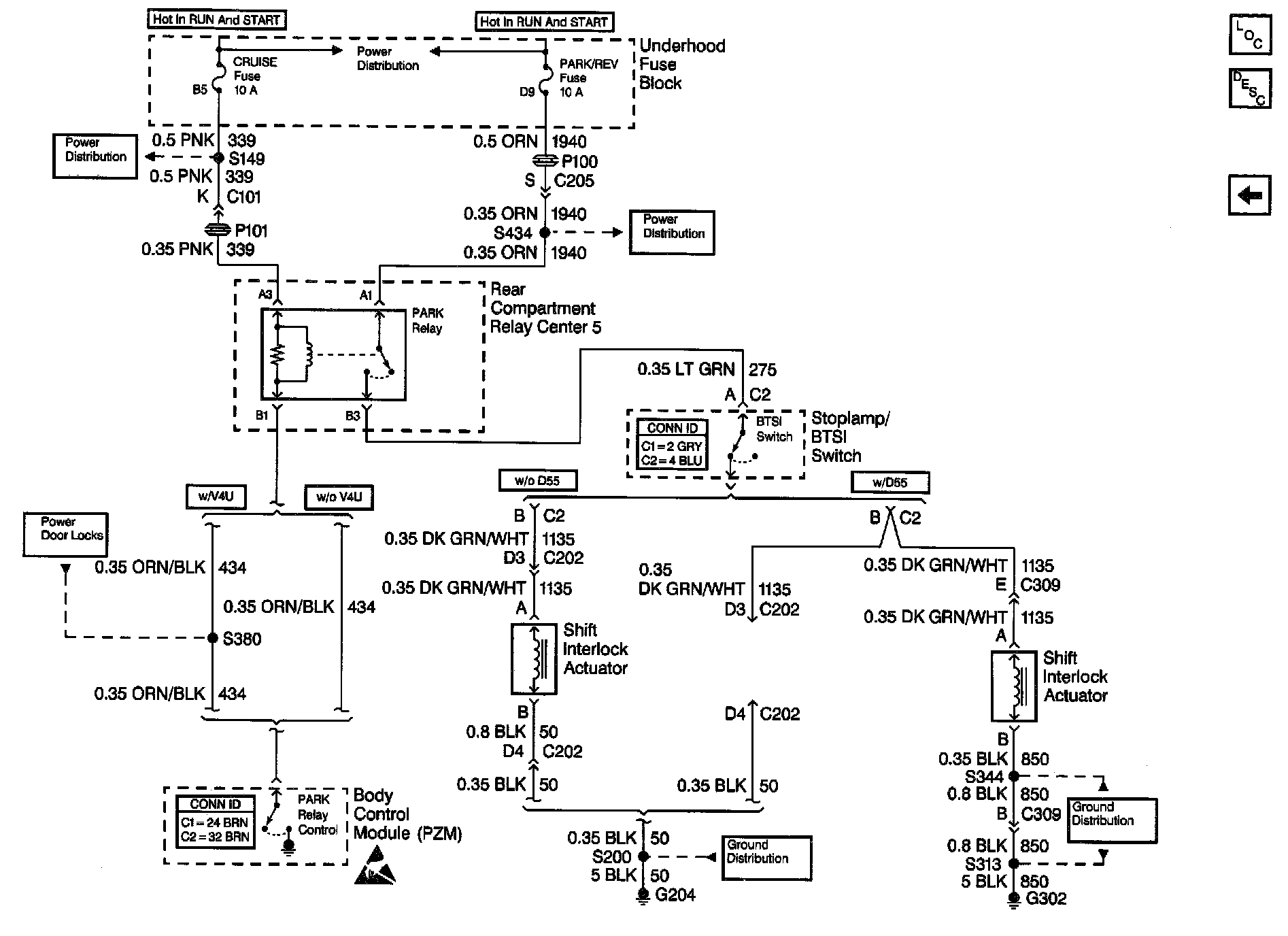

Cell 138: Shift Interlock Actuator

Cell 138: Shift Interlock Actuator:
