Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> Wiper/Washer System (Pulse) Schematic (W/CE1) >> Module Inputs

Module Inputs

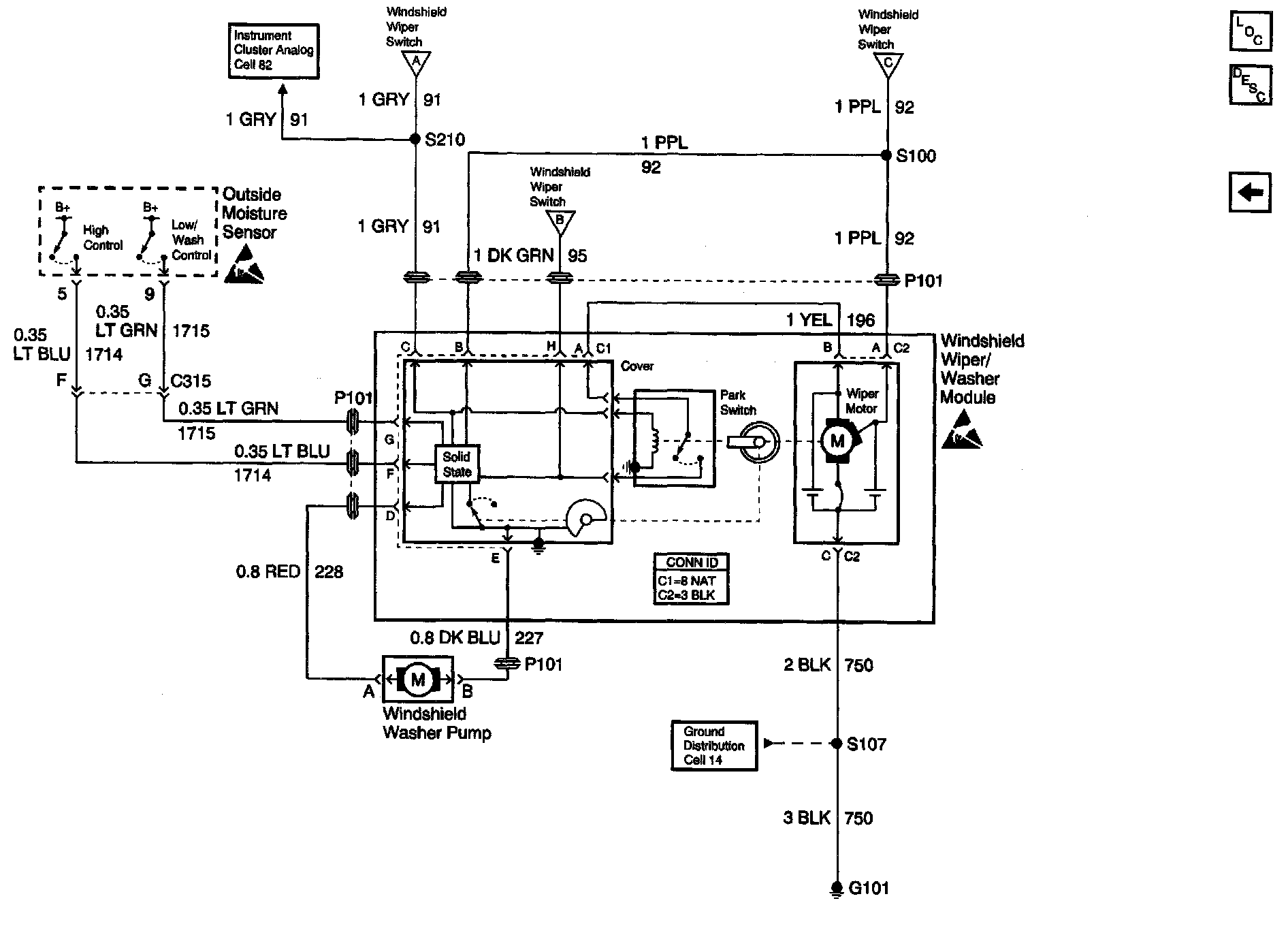

Wiper/Washer System (Pulse) Schematic (W/CE1): Module Inputs:
