Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic ) >> Automatic Level Control Suspension Schematics >> Cell 42: Automatic Level Control (Without F45)

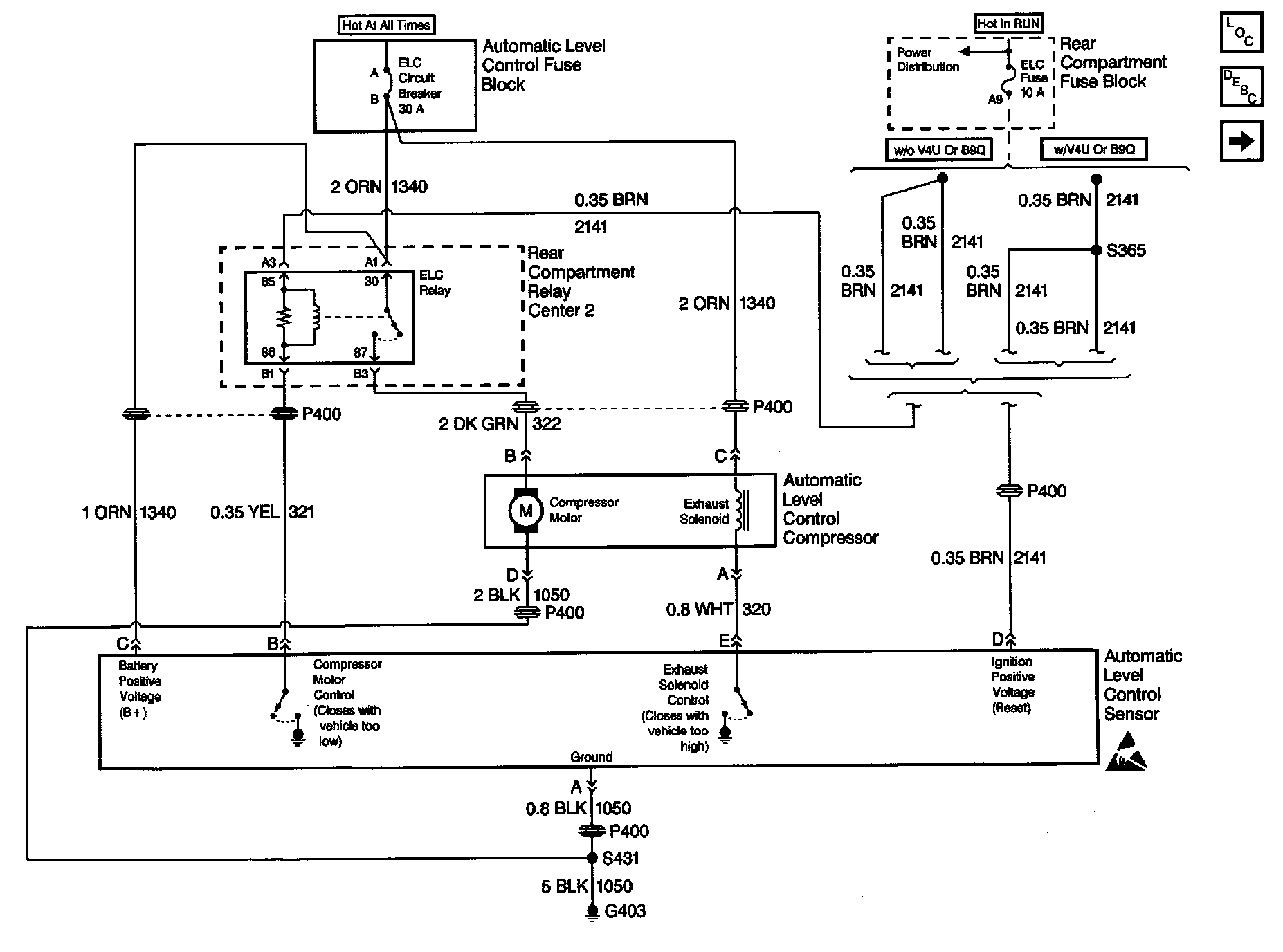

Cell 42: Automatic Level Control (Without F45)

Cell 42: Automatic Level Control (Without F45):
