STOP LPS

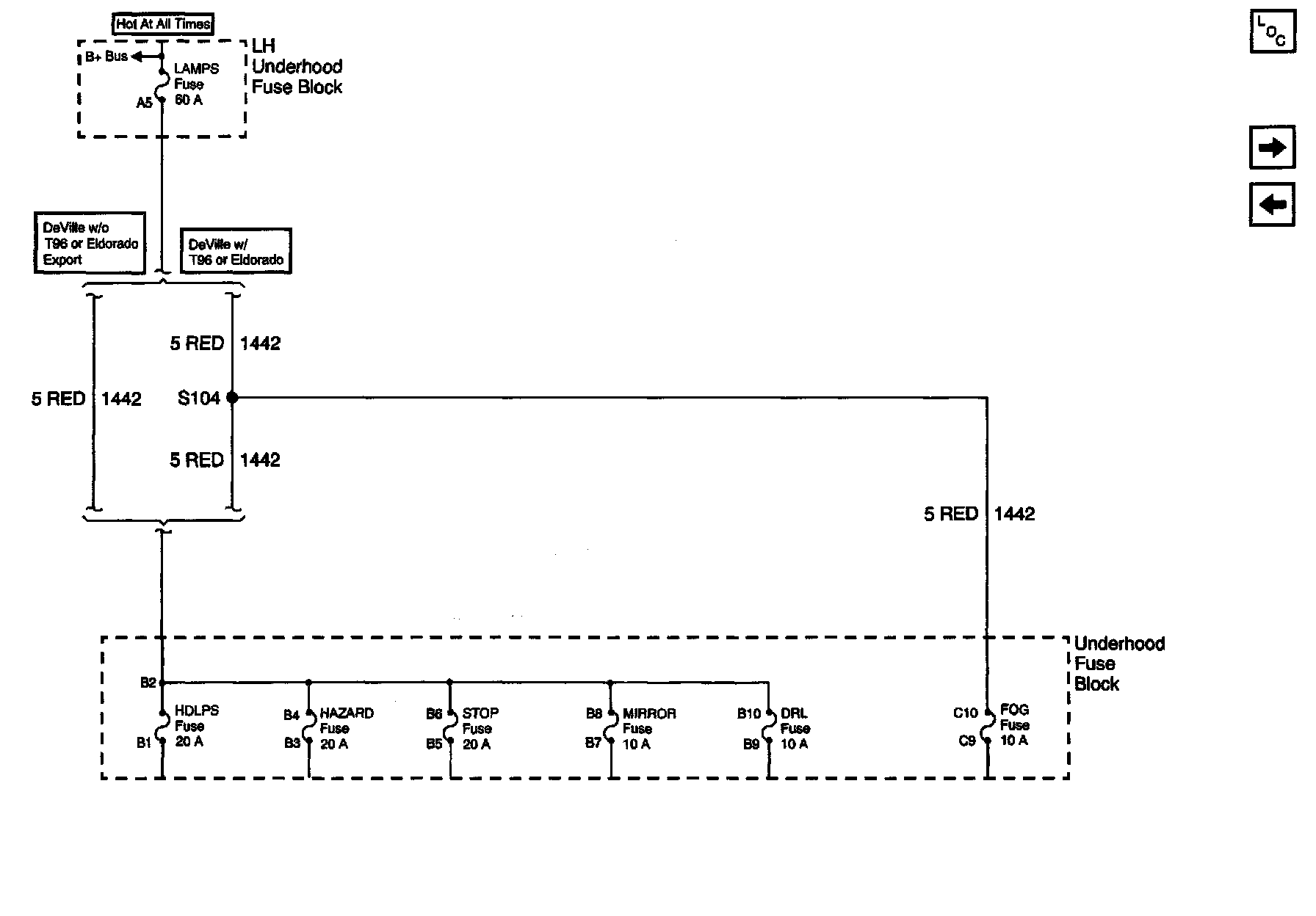

Power Distribution Schematics: LAMPS Fuse:

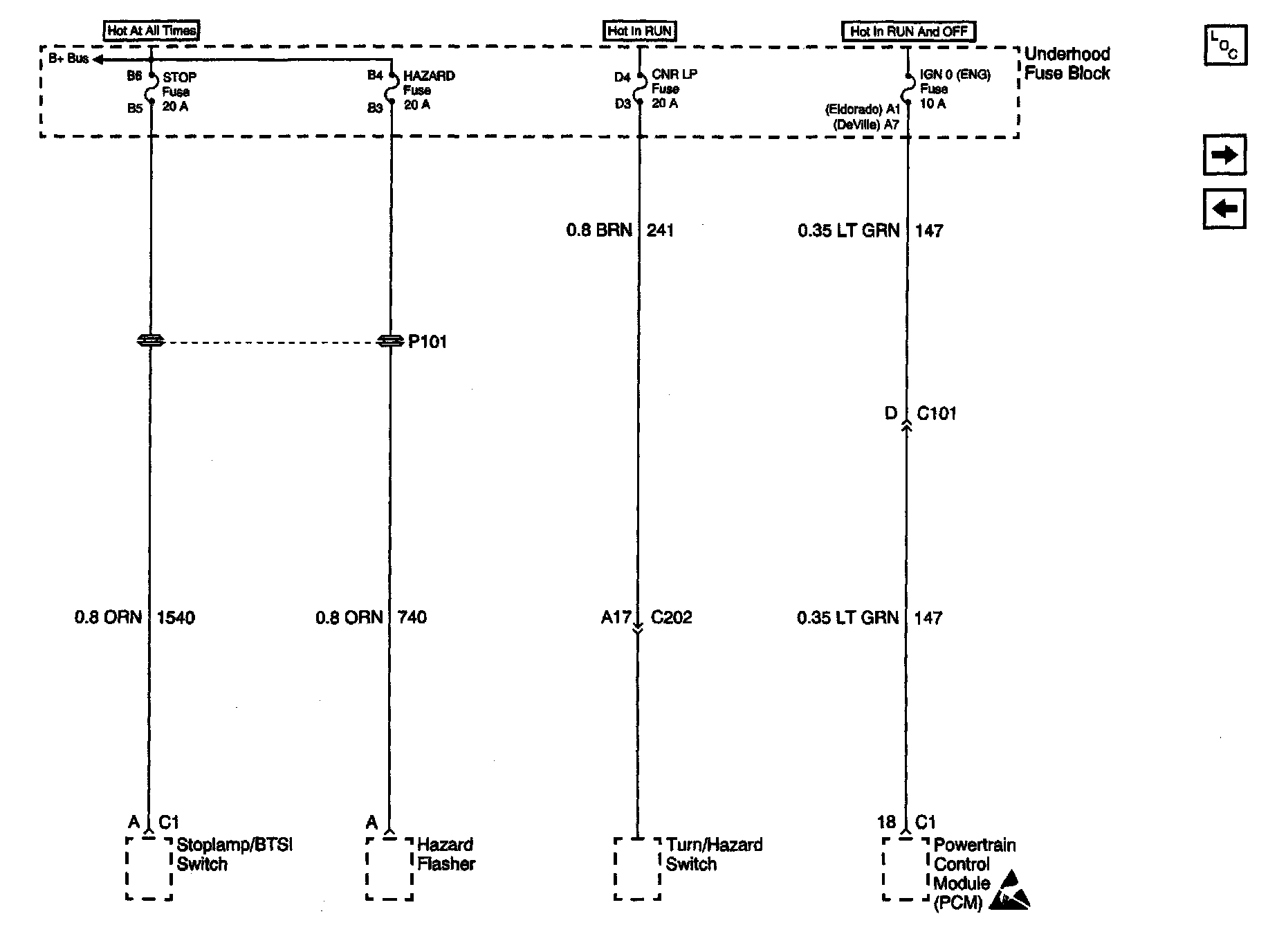

Power Distribution Schematics: STOP, HAZARD, CNR LP And IGN 0 (ENG) Fuses:
