Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Schematics By Component Name >> Fuses >> Navigational Aids >> Schematics >> C

C

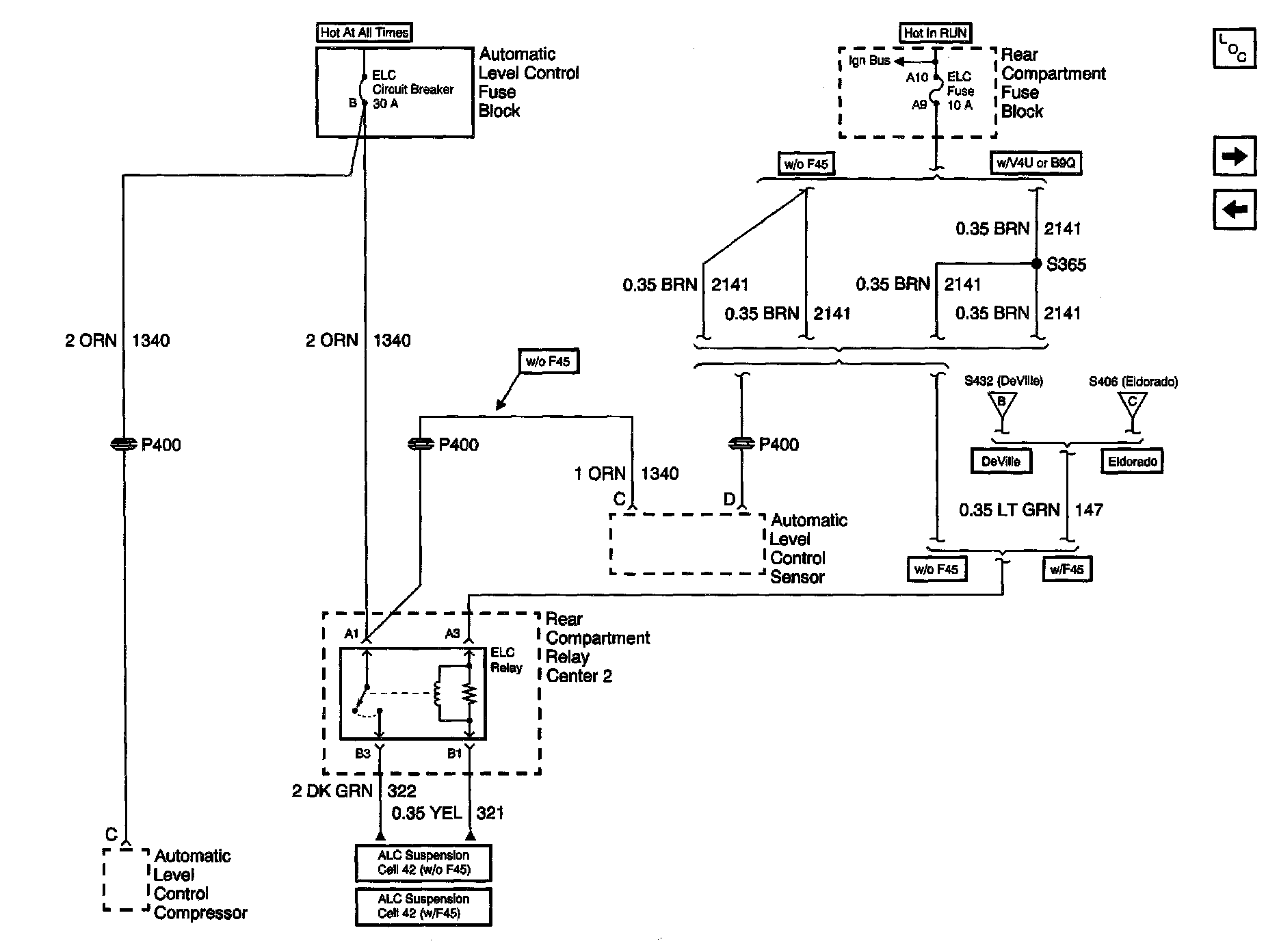

Power Distribution Schematics: ELC Circuit Breaker And ELC Fuse:
