Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Ground Distribution Diagrams >> Navigational Aids >> Ground Schematics >> D >> From

From

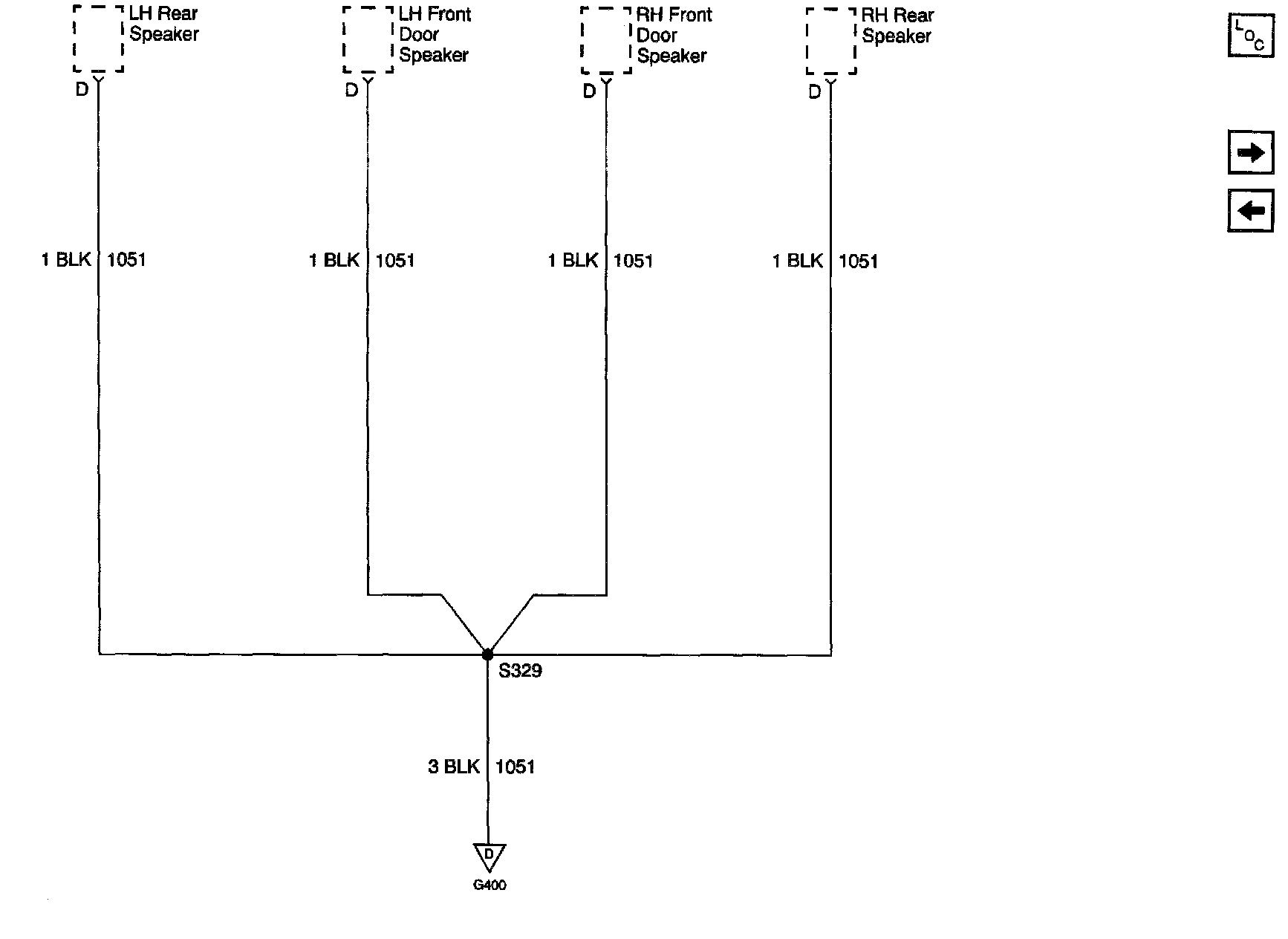

Ground Distribution Schematics: G400 W/UQ4:
