Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio/Audio System Schematics >> Speakers (Eldorado W/UW6)

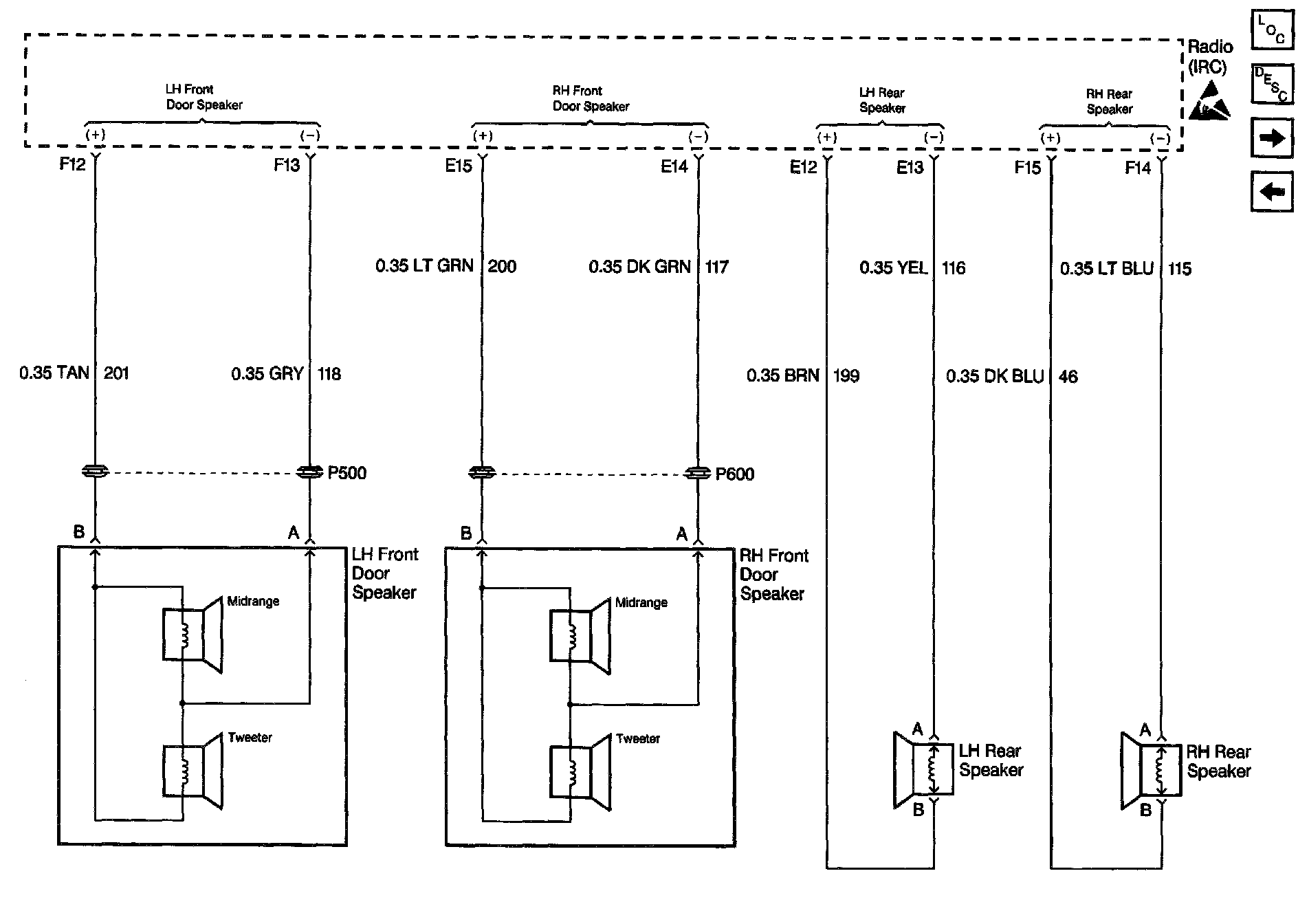

Speakers (Eldorado W/UW6)

Radio/Audio System Schematics: Speakers (Eldorado W/UW6):
