Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio/Audio System Schematics >> Radio and Radio Amplifier (W/UQ6)

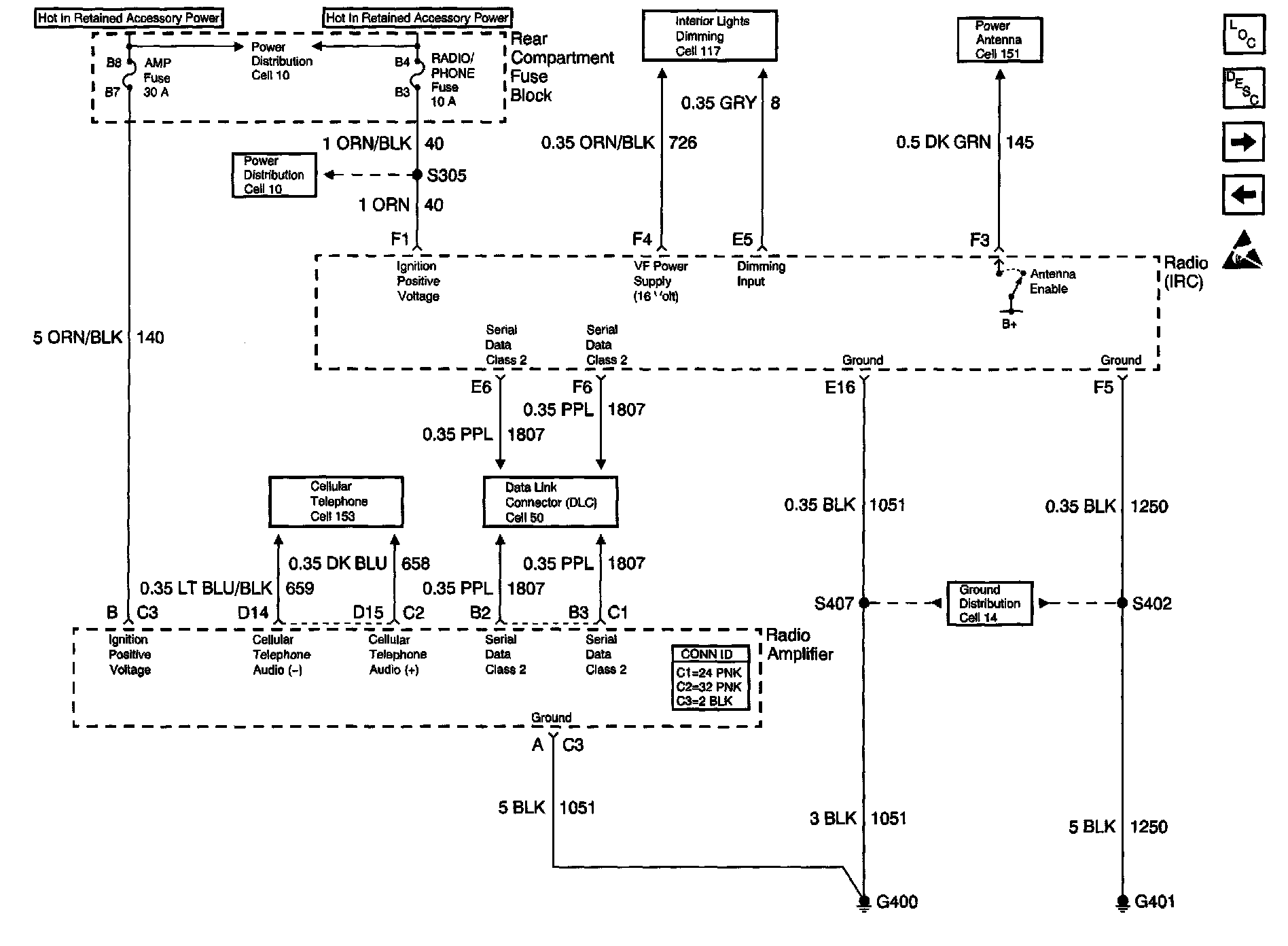

Radio and Radio Amplifier (W/UQ6)

Radio/Audio System Schematics: Radio And Radio Ampifier (w/UQ6):
