Radio Interface Module and Speakers (W/UQ4)

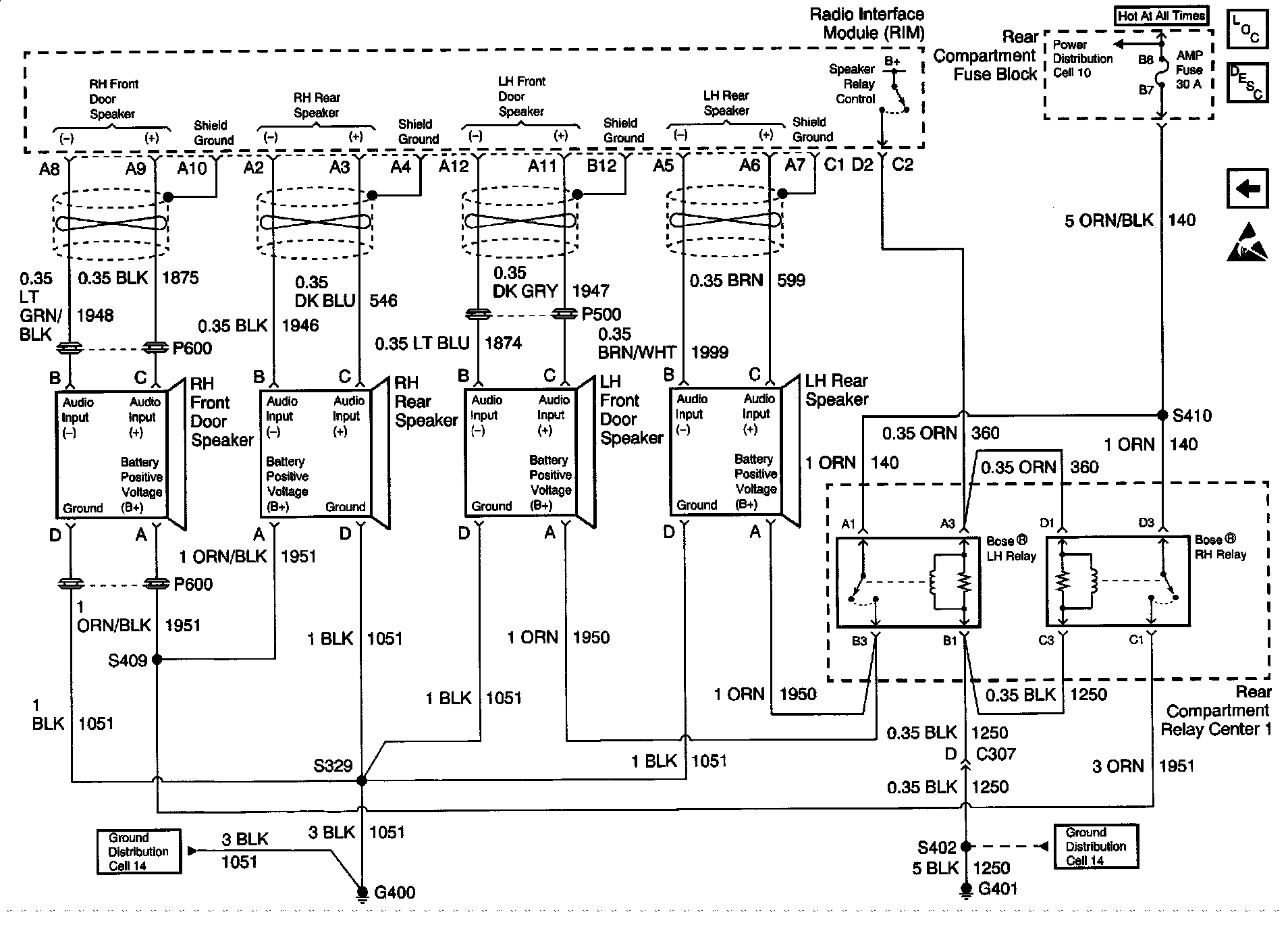

Radio/Audio System Schematics: Radio Interface Module And Speakers (w/UQ4):
