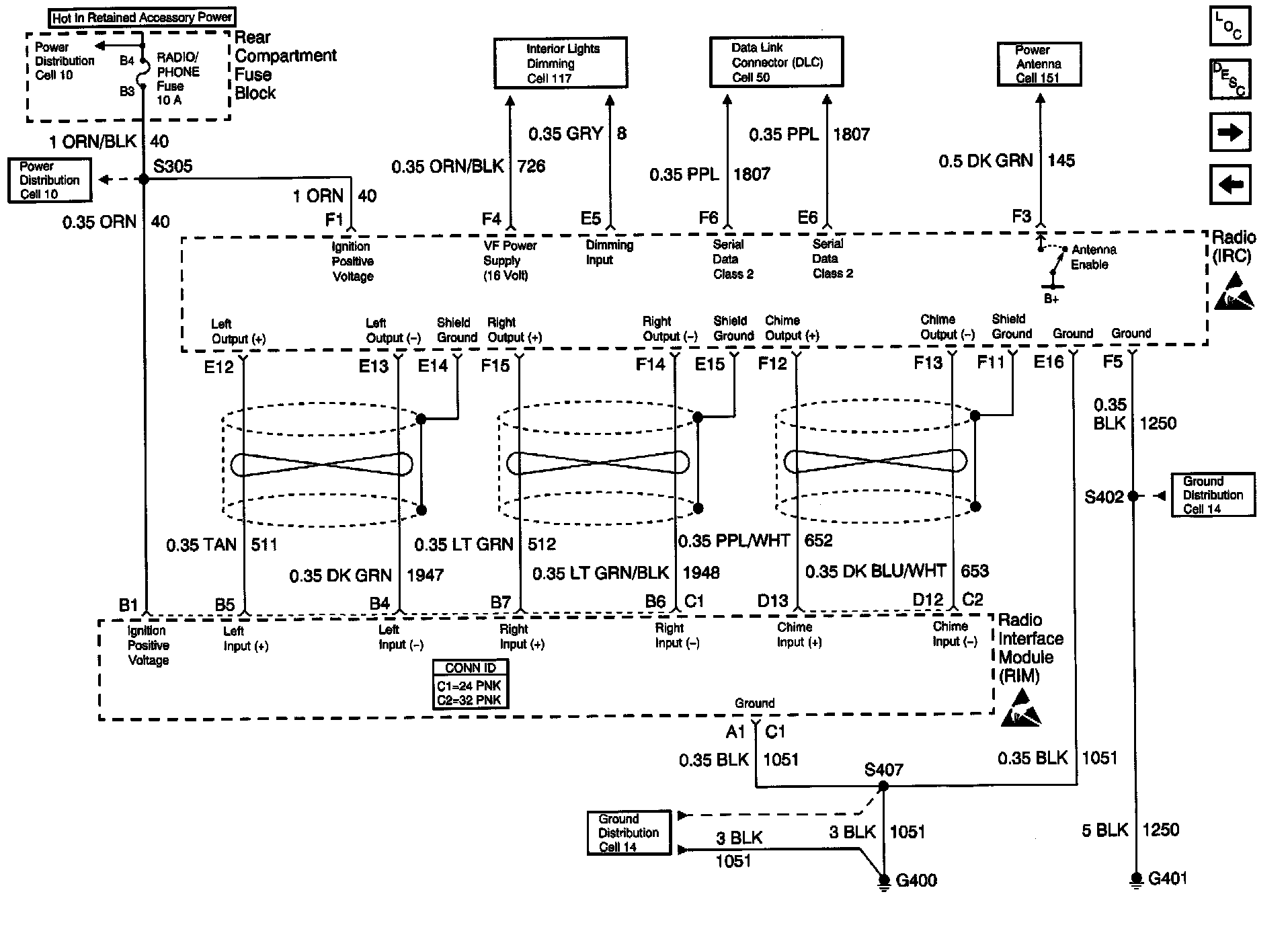

Radio And Radio Interference (RIM) (w/UQ4)

Radio/Audio System Schematics: Radio And Radio Interference (RIM) (w/UQ4):
