Radio Amplifier and Speakers (W/UQ6)

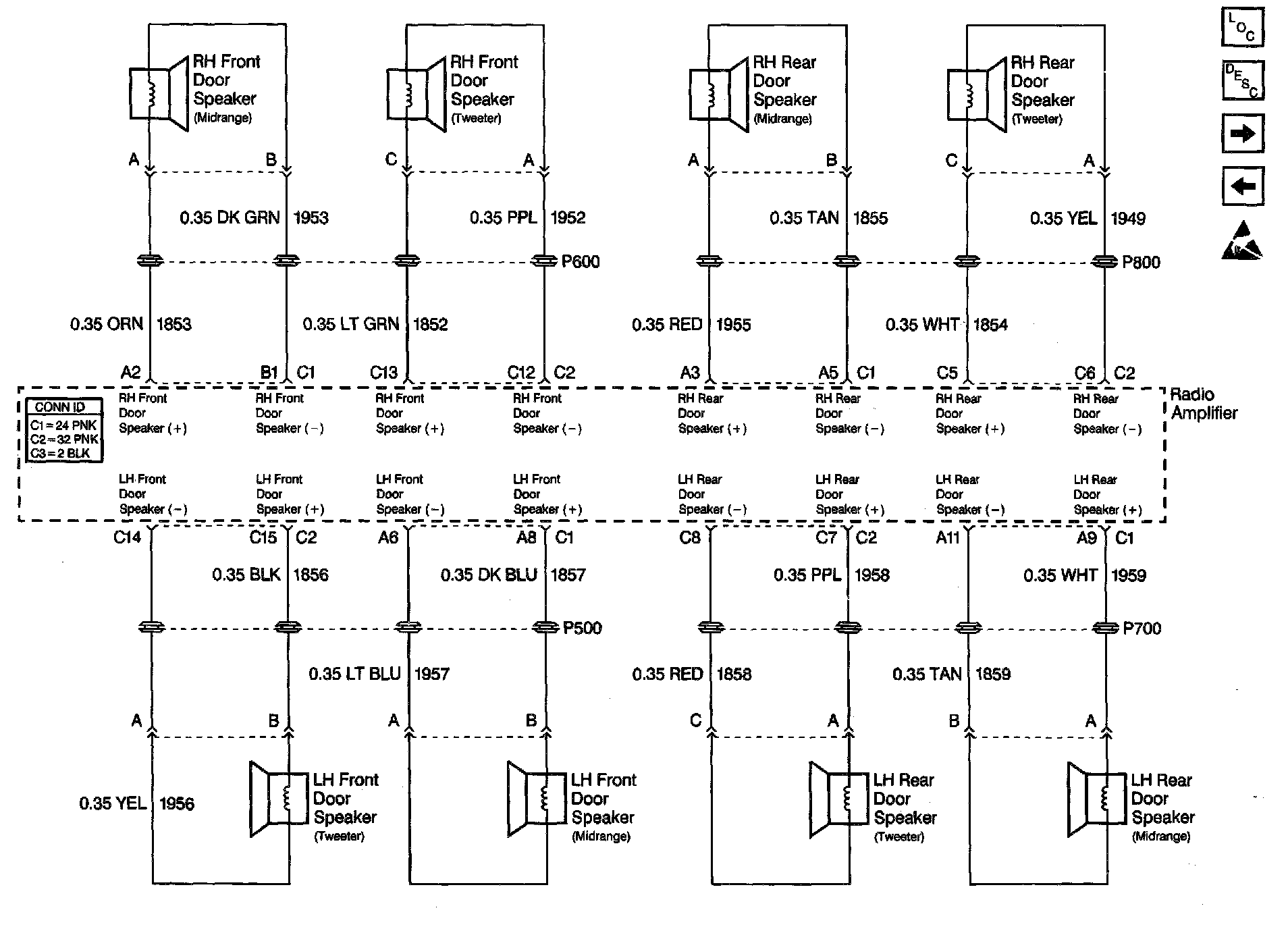

Radio/Audio System Schematics: Radio Amplifier And Speakers (w/UQ6):

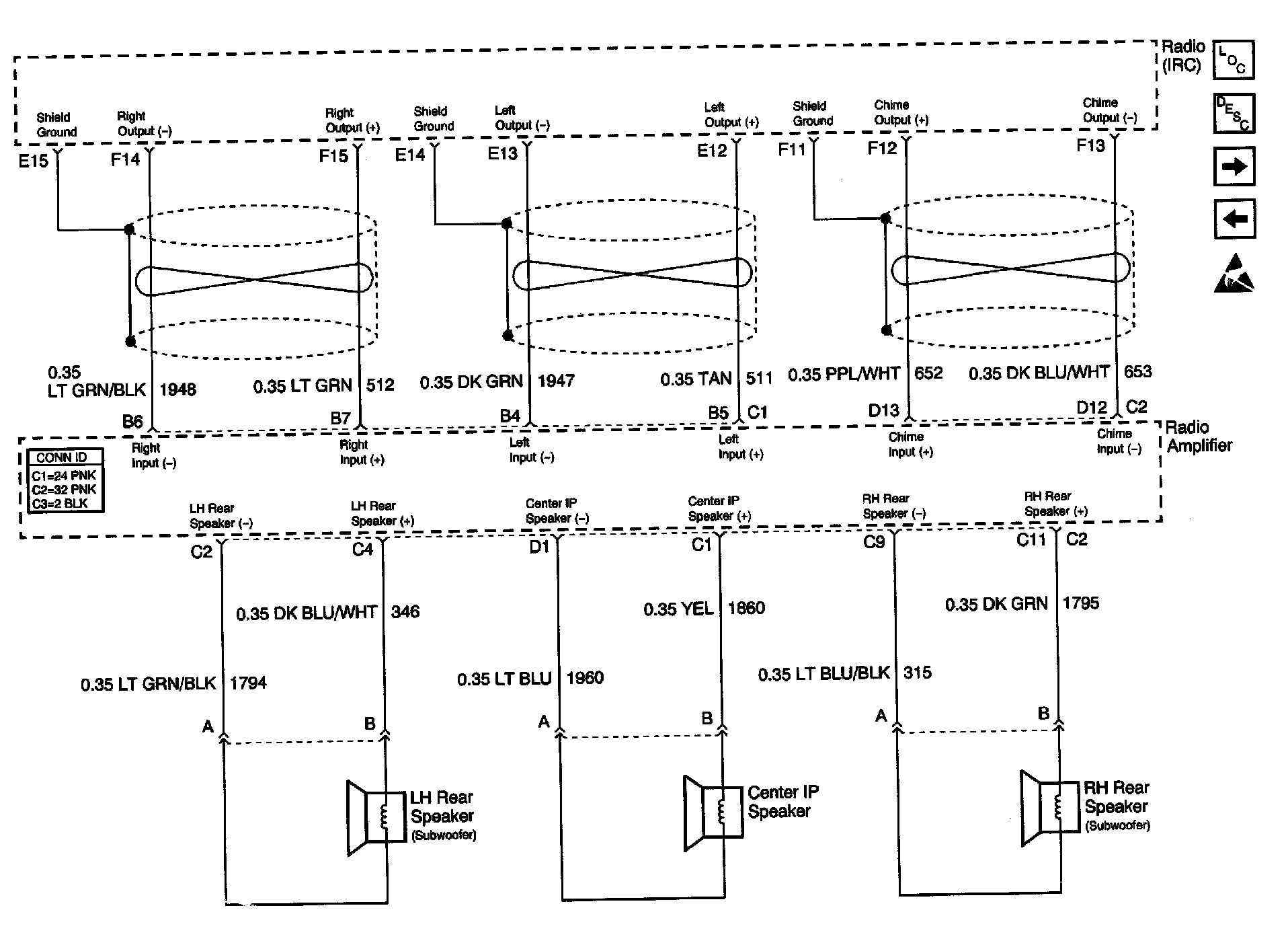

Radio/Audio System Schematics: Radio Amplifier And Speakers (w/UQ6):
