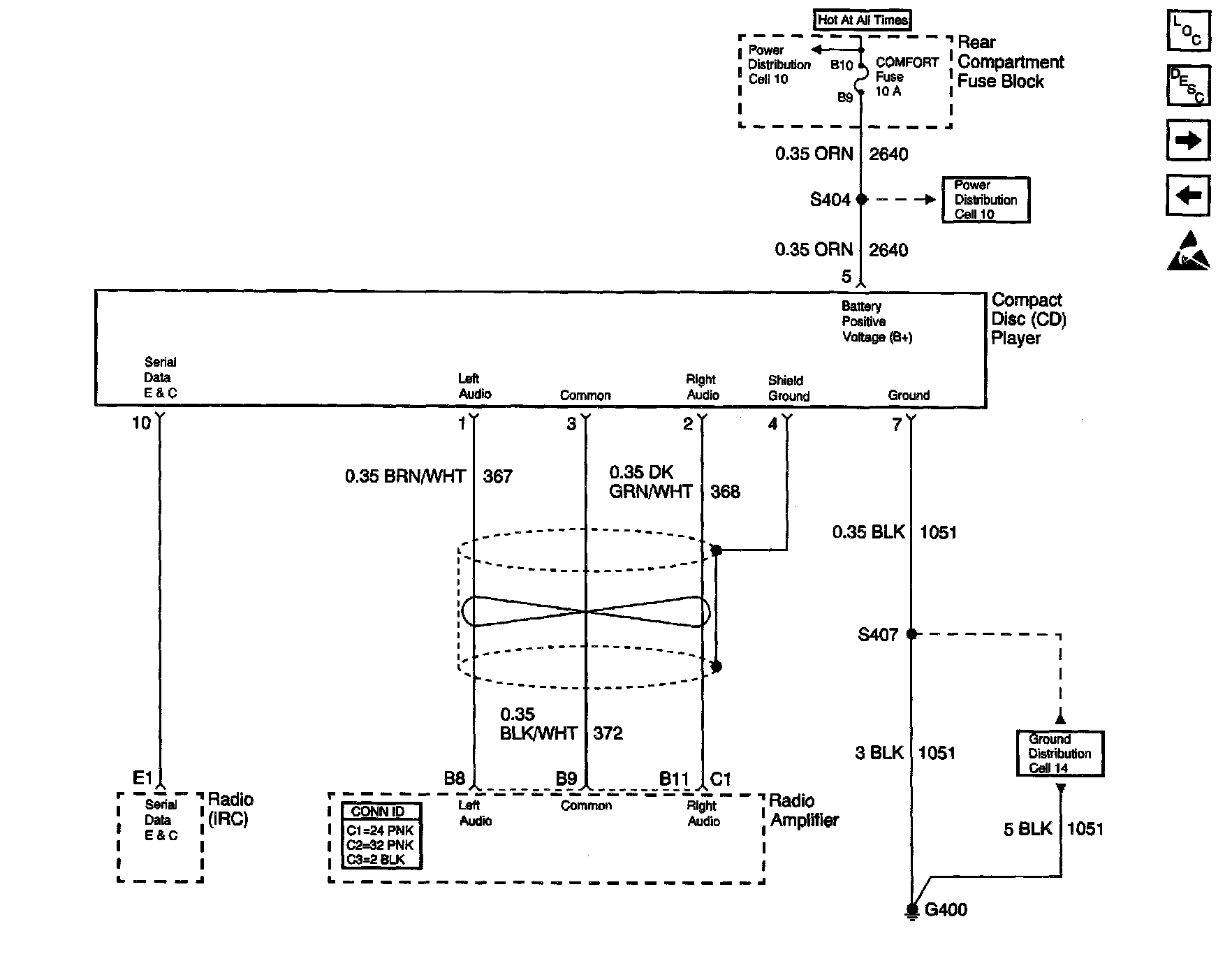

Compact Disc (CD) Player (w/UQ6 And U1S)

Radio/Audio System Schematics: Compact Disc (CD) Player (w/UQ6 And U1S):
