Power, Ground and Class 2 (Export)

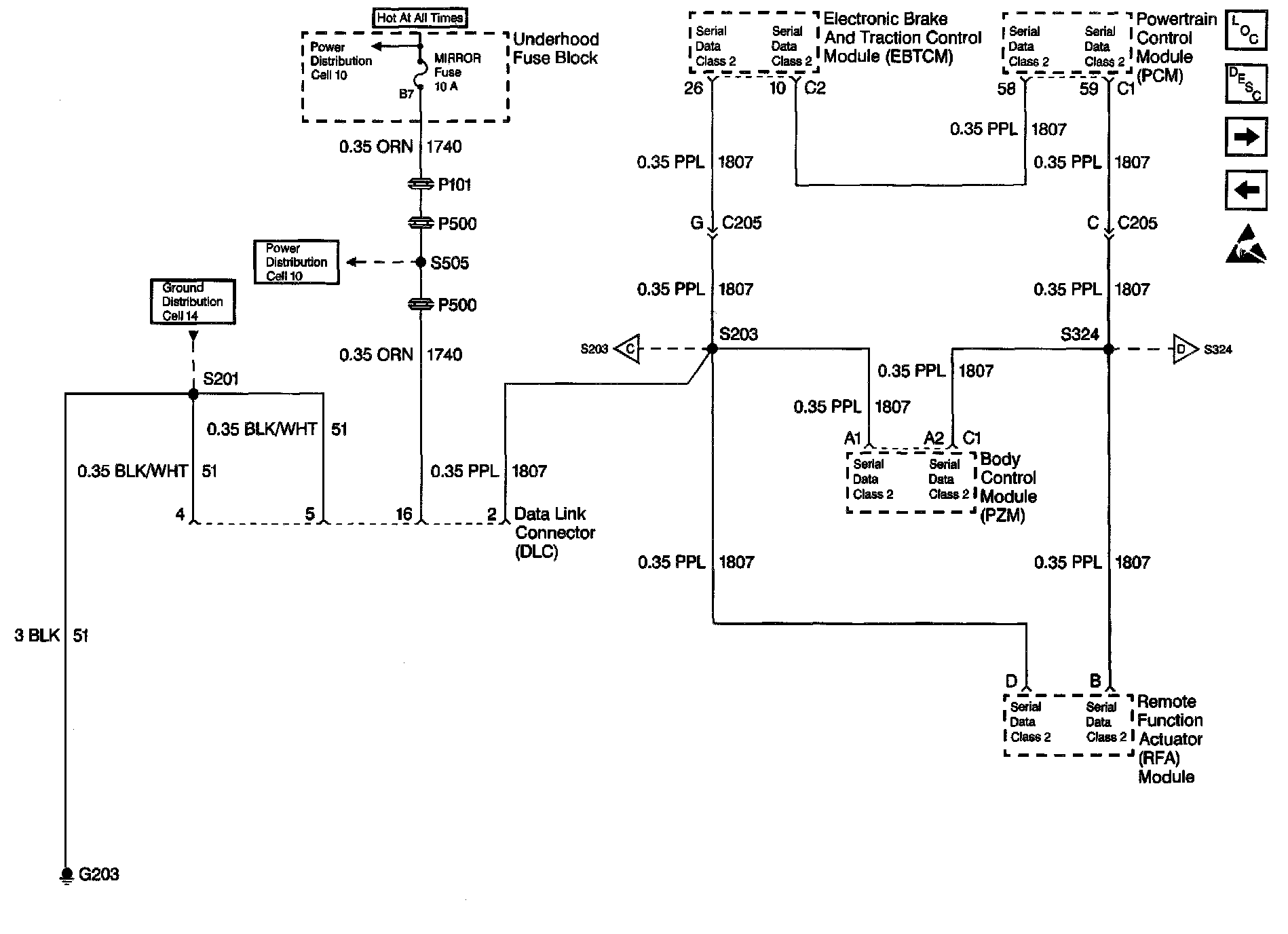

Data Link Connector (DLC) Schematics: Power, Ground And Class 2 (Export):
