Body Control Module (BCM) Power and Ground

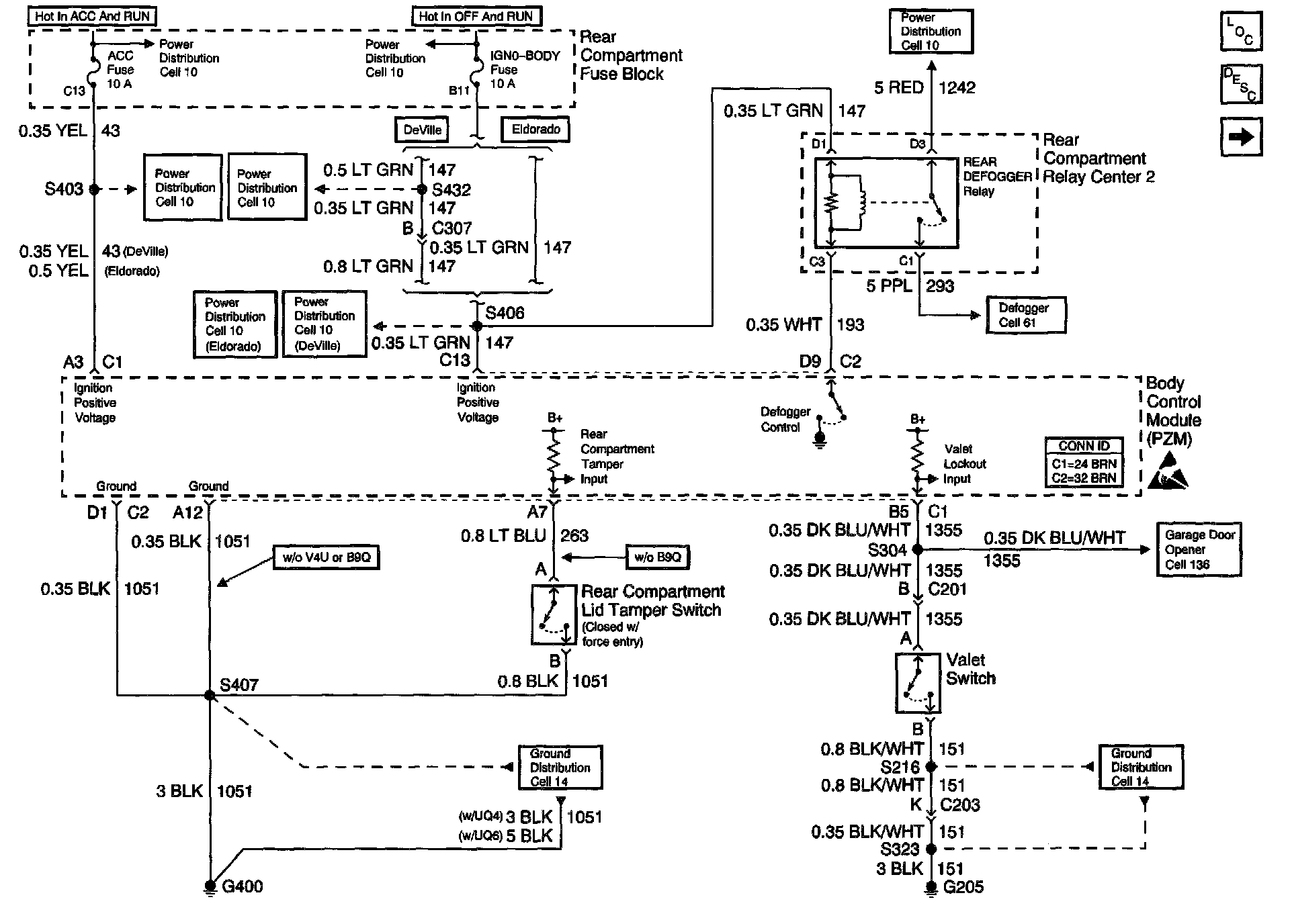

Body Control Module Schematics: Body Control Module Power And Ground:
