Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights >> Interior Lights Schematics >> Courtesy/Reading Lamps (w/YP7 Or YP8)

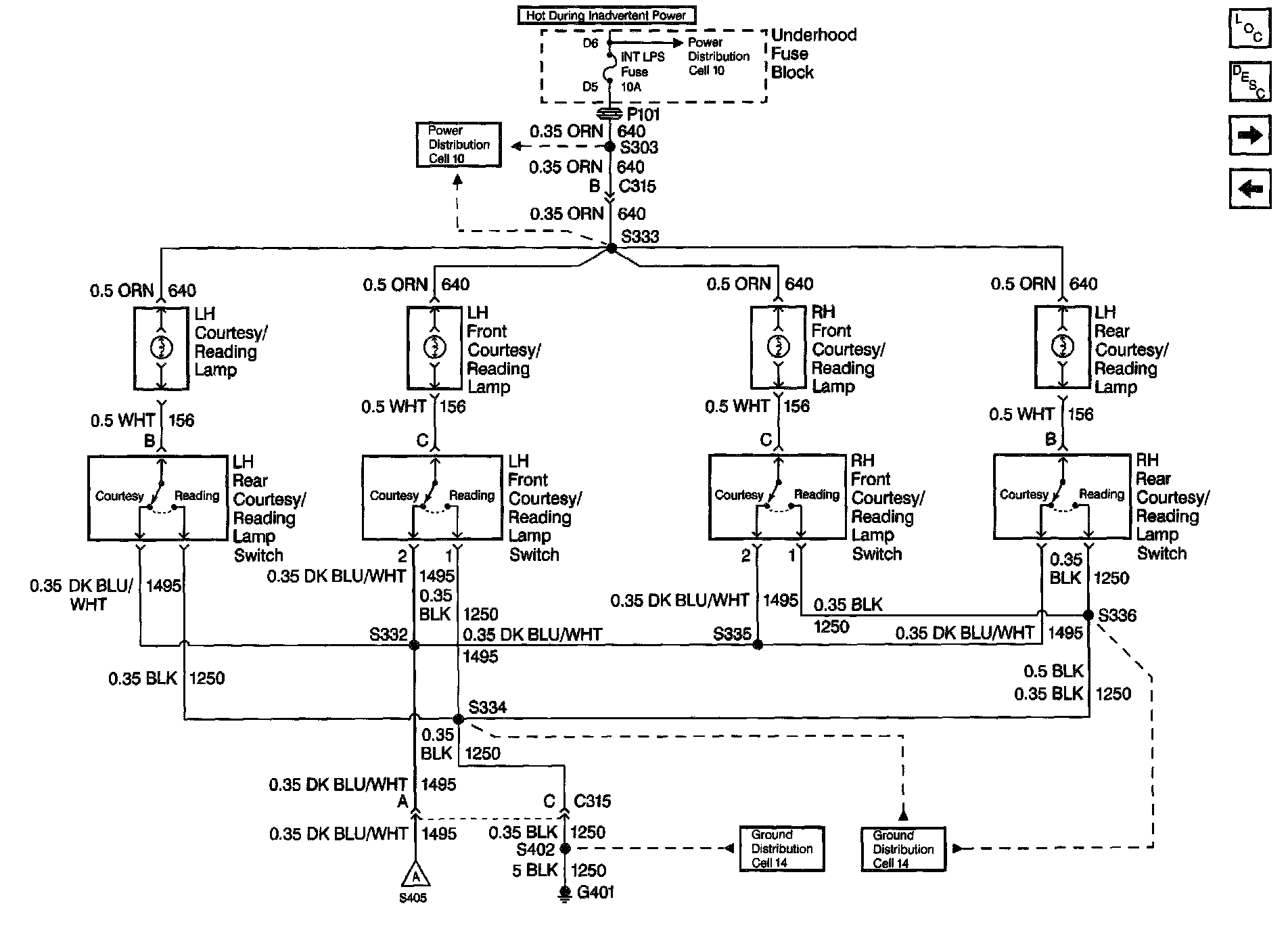

Courtesy/Reading Lamps (w/YP7 Or YP8)

Interior Lights Schematics (DeVille): Courtesy/Reading Lamps (w/YP7 Or YP8):
