Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights >> Interior Lights Dimming Schematics >> Instrument Panel Backlighting

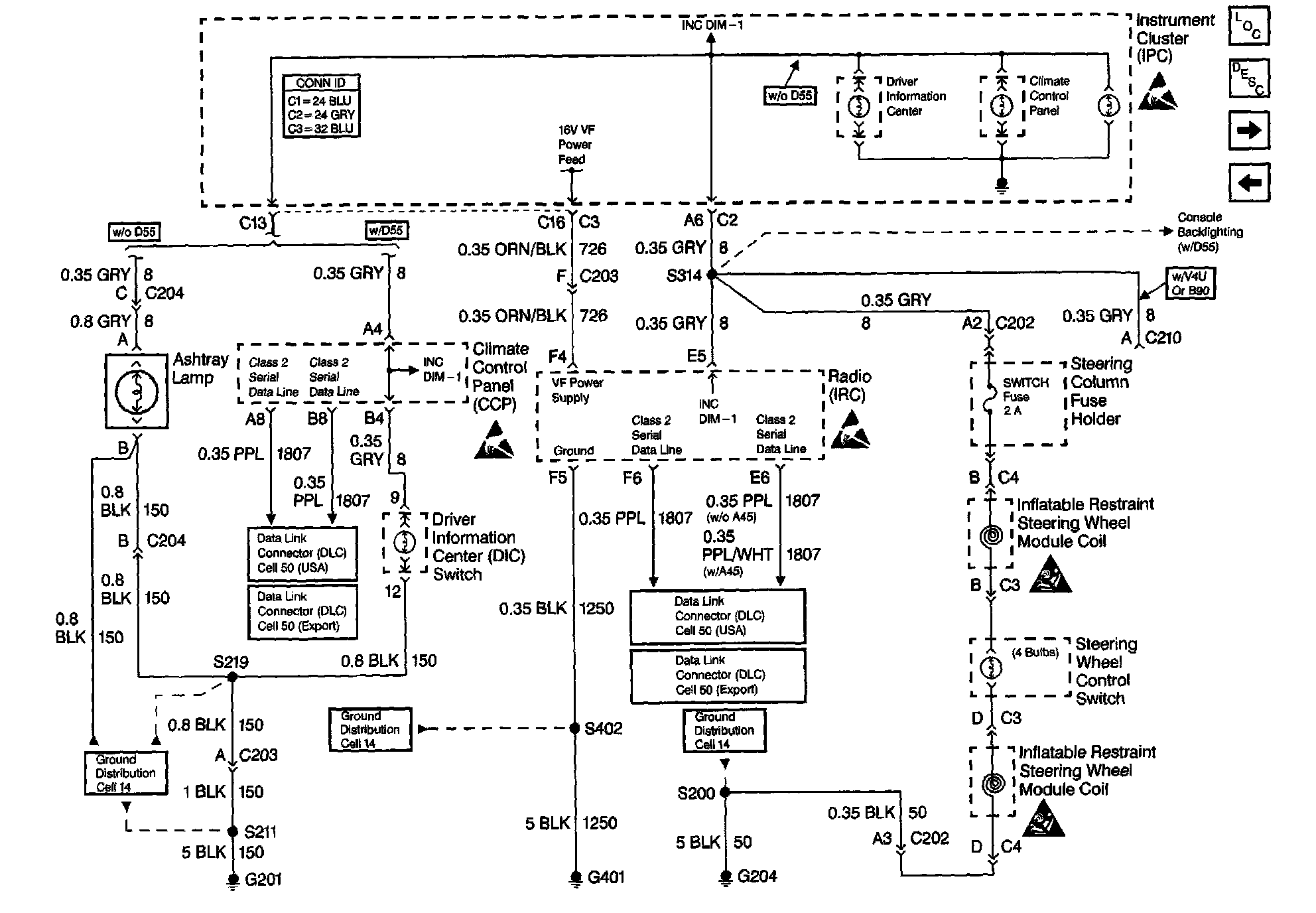

Instrument Panel Backlighting

Interior Lights Dimming Schematics: Instrument Panel Backlighting:
