Headlight Schematics

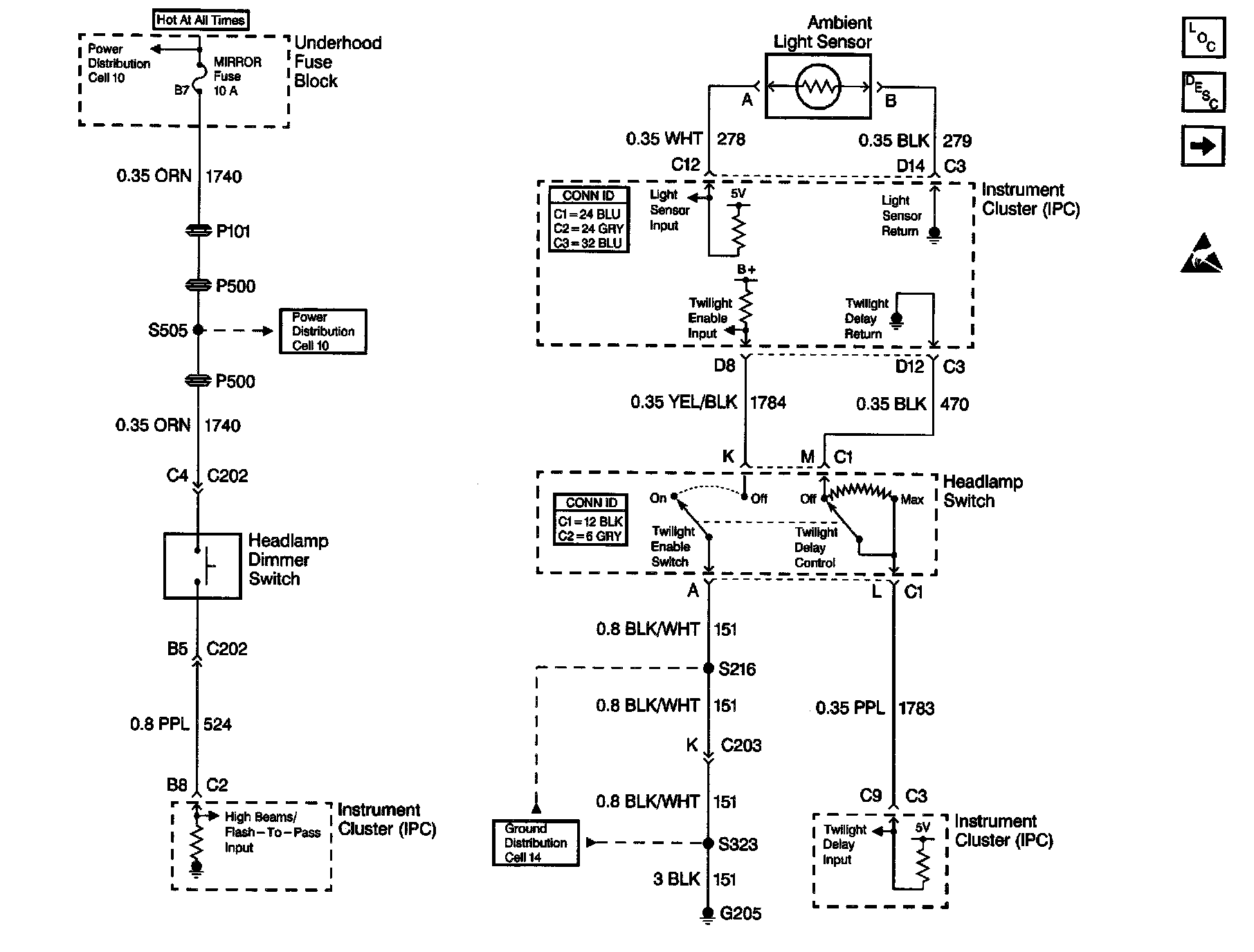

Headlight Schematics (DeVille USA): Headlamp Dimmer SW, Ambient Light Sensor & Twilight Sentinel:

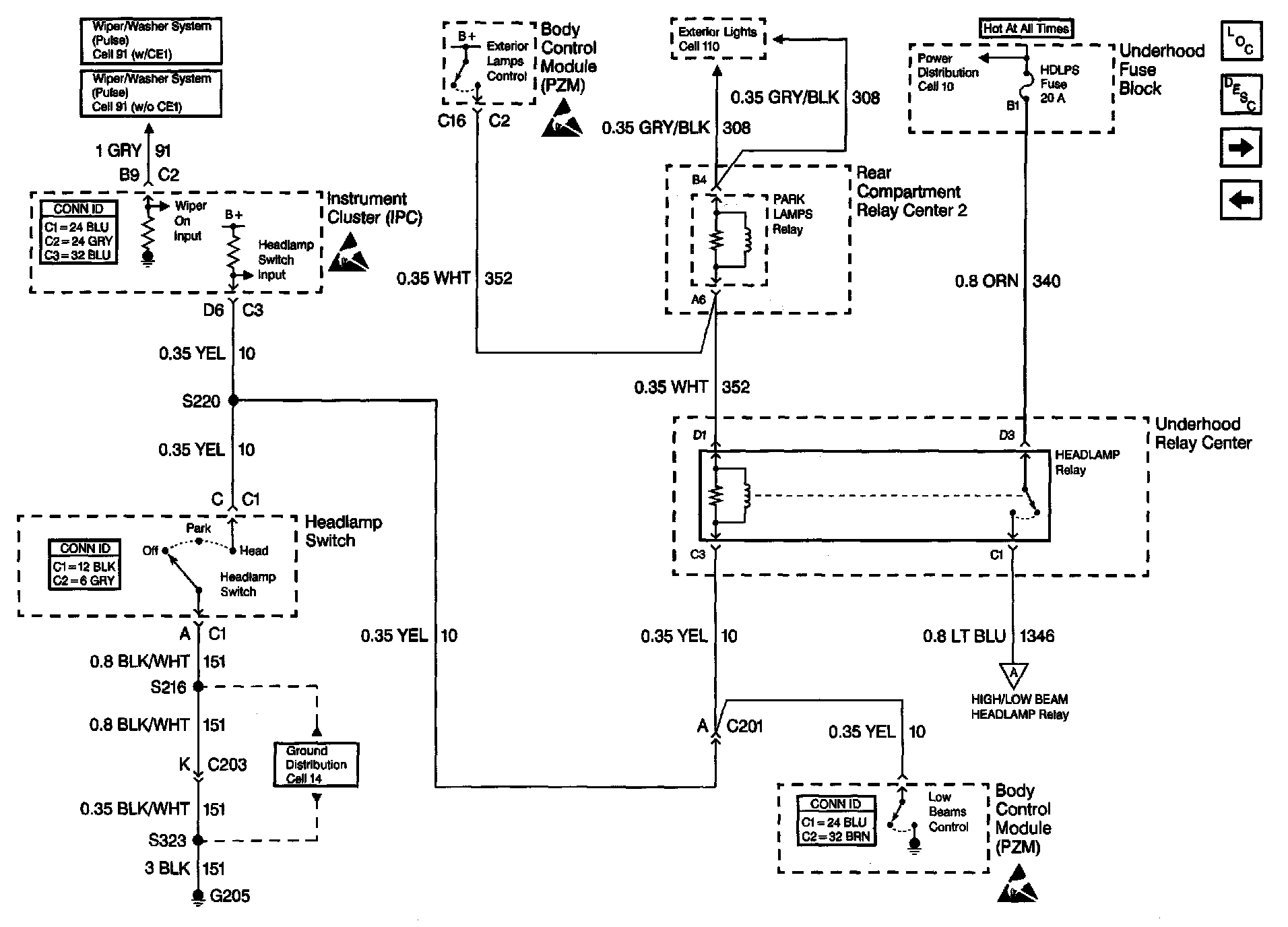

Headlight Schematics (DeVille USA): Headlamp Switch And Headlamp Control:

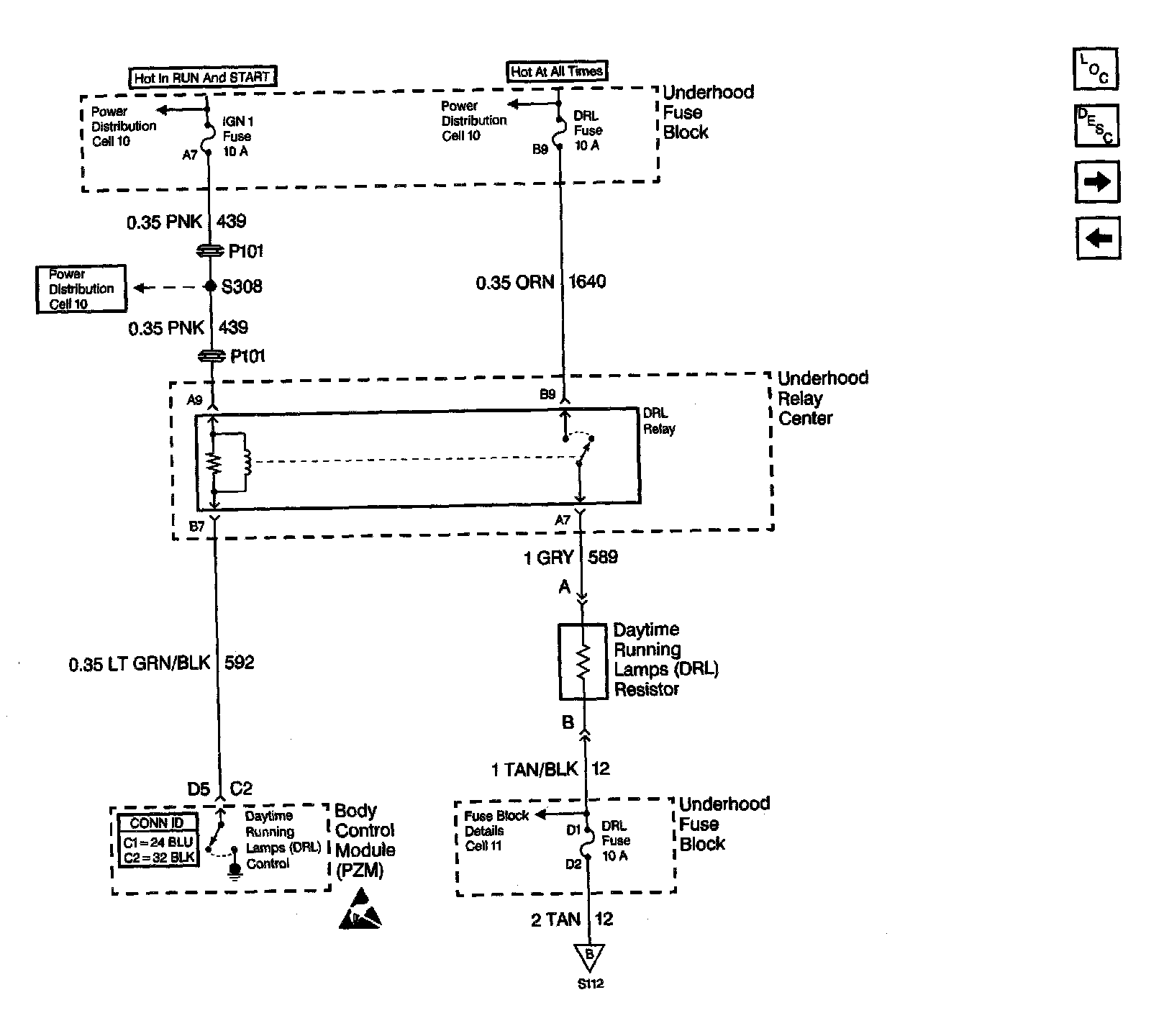

Headlight Schematics (DeVille USA): Daytime Running Lamps:

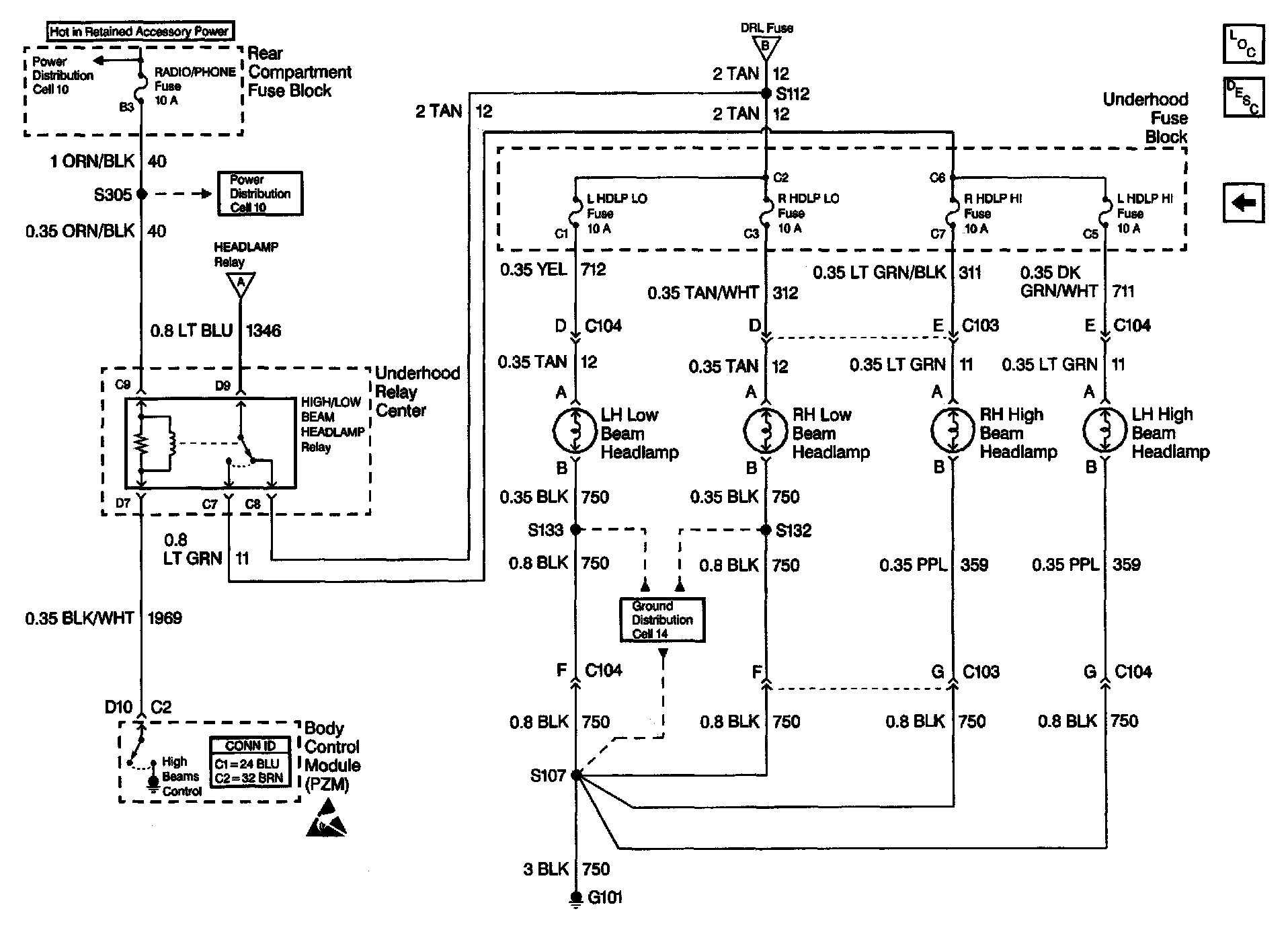

Headlight Schematics (DeVille USA): Headlights (DeVille USA):

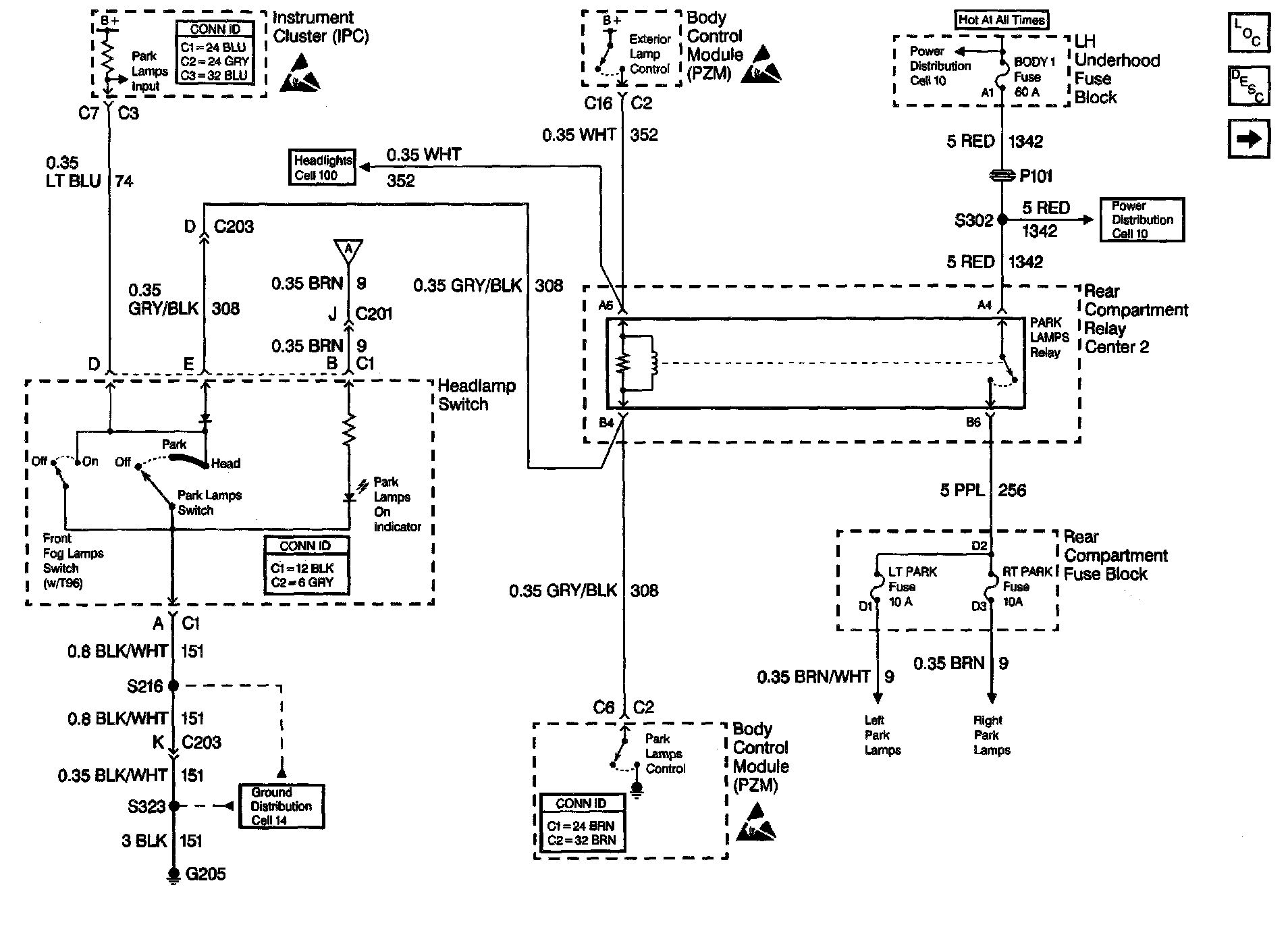

Exterior Lights Schematics (DeVille USA): Headlamp Switch And Park Lamp Control:
