Turn Signal Flasher, Hazard Flasher And Stoplamp/BTSI Switch

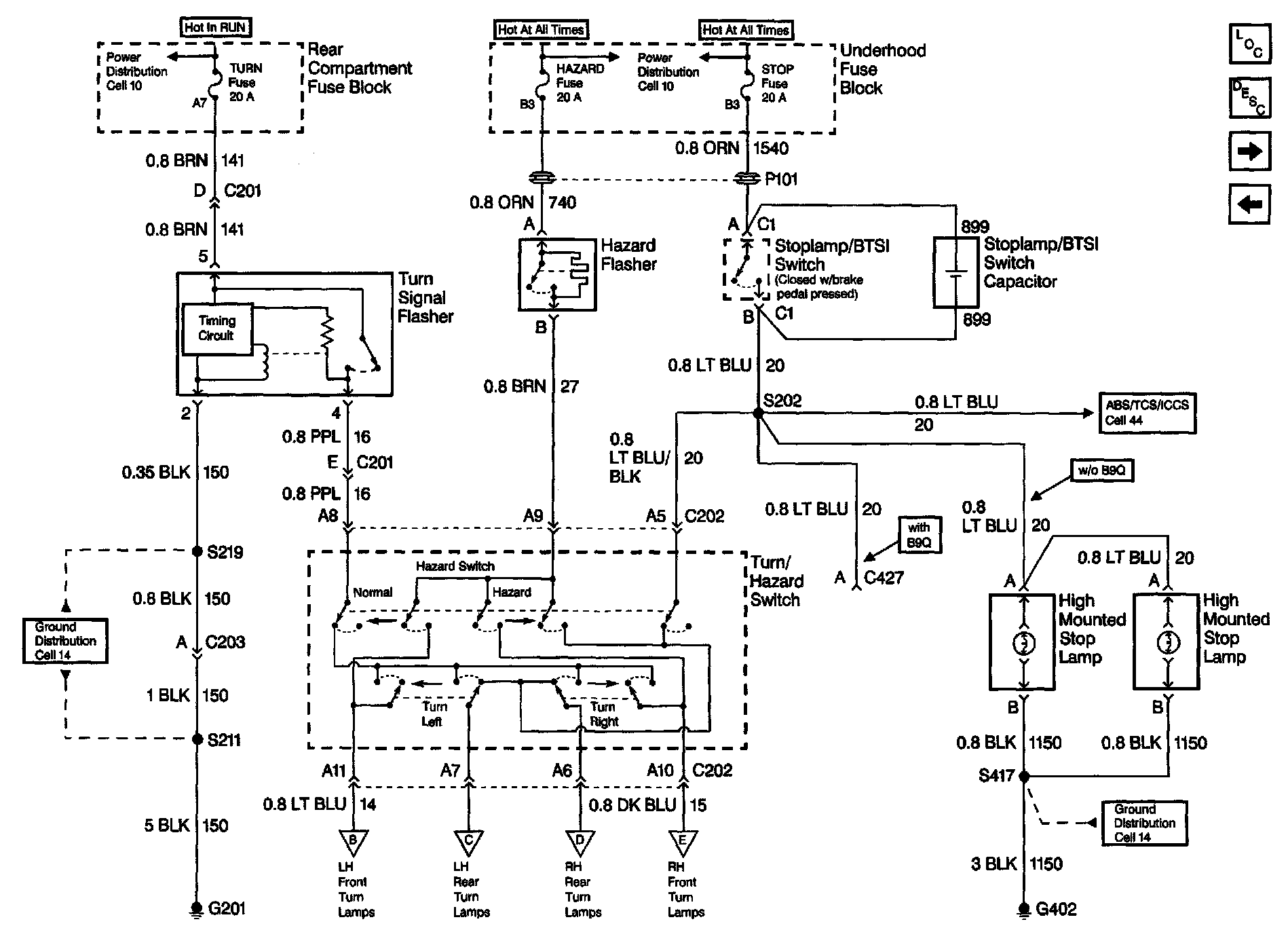

Exterior Lights Schematics (DeVille USA): Turn Signal Flasher, Hazard Flasher & Stoplamp/BTSI Switch:
