Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lights >> RH Park Lamps

RH Park Lamps

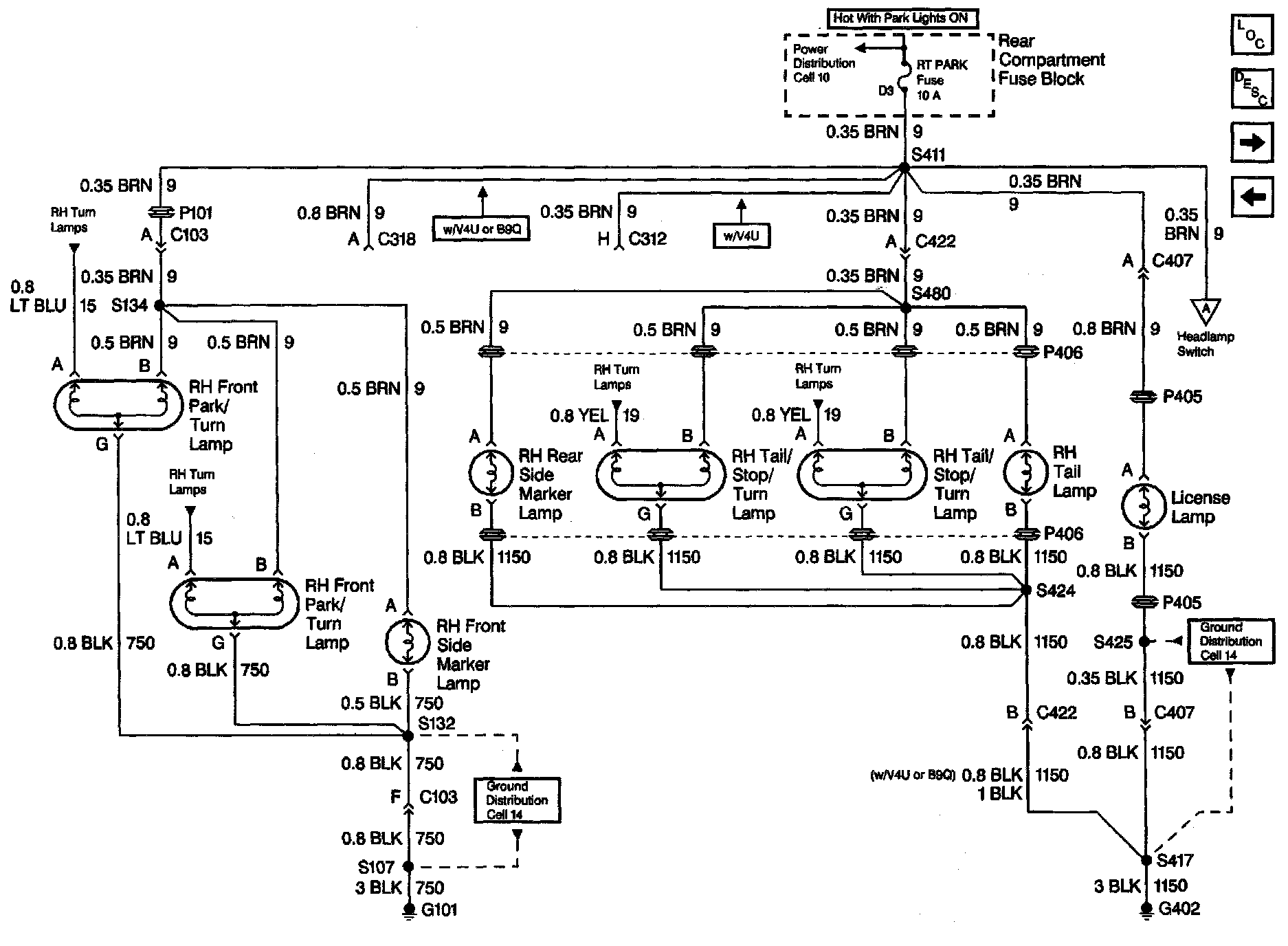

Exterior Lights Schematics (DeVille USA): RH Park Lamps:
