Rear Compartment Fuse Block

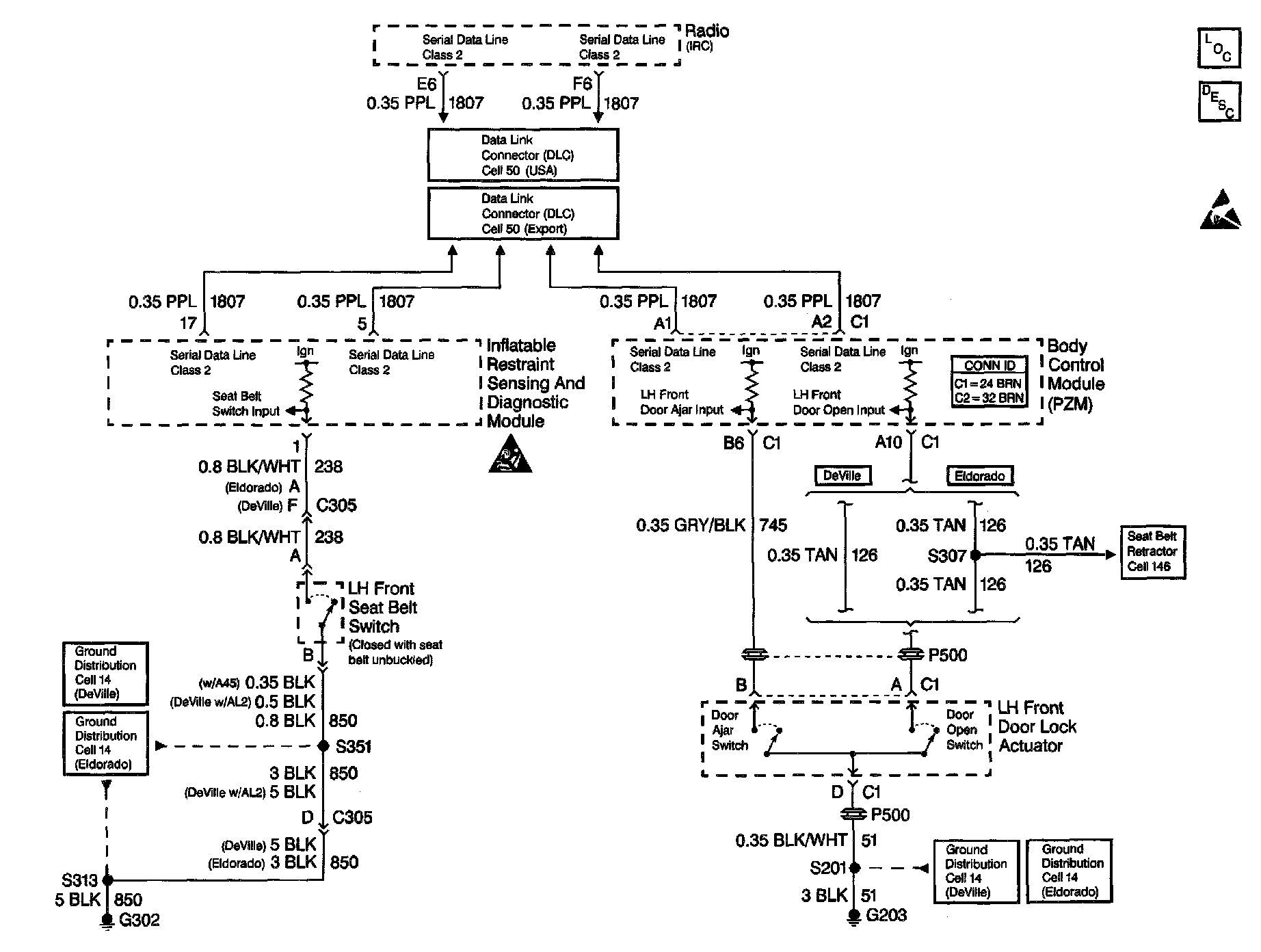

Instrument Cluster: Analog Schematics - Instrument Cluster, Rear Compartment Fuse Block:
