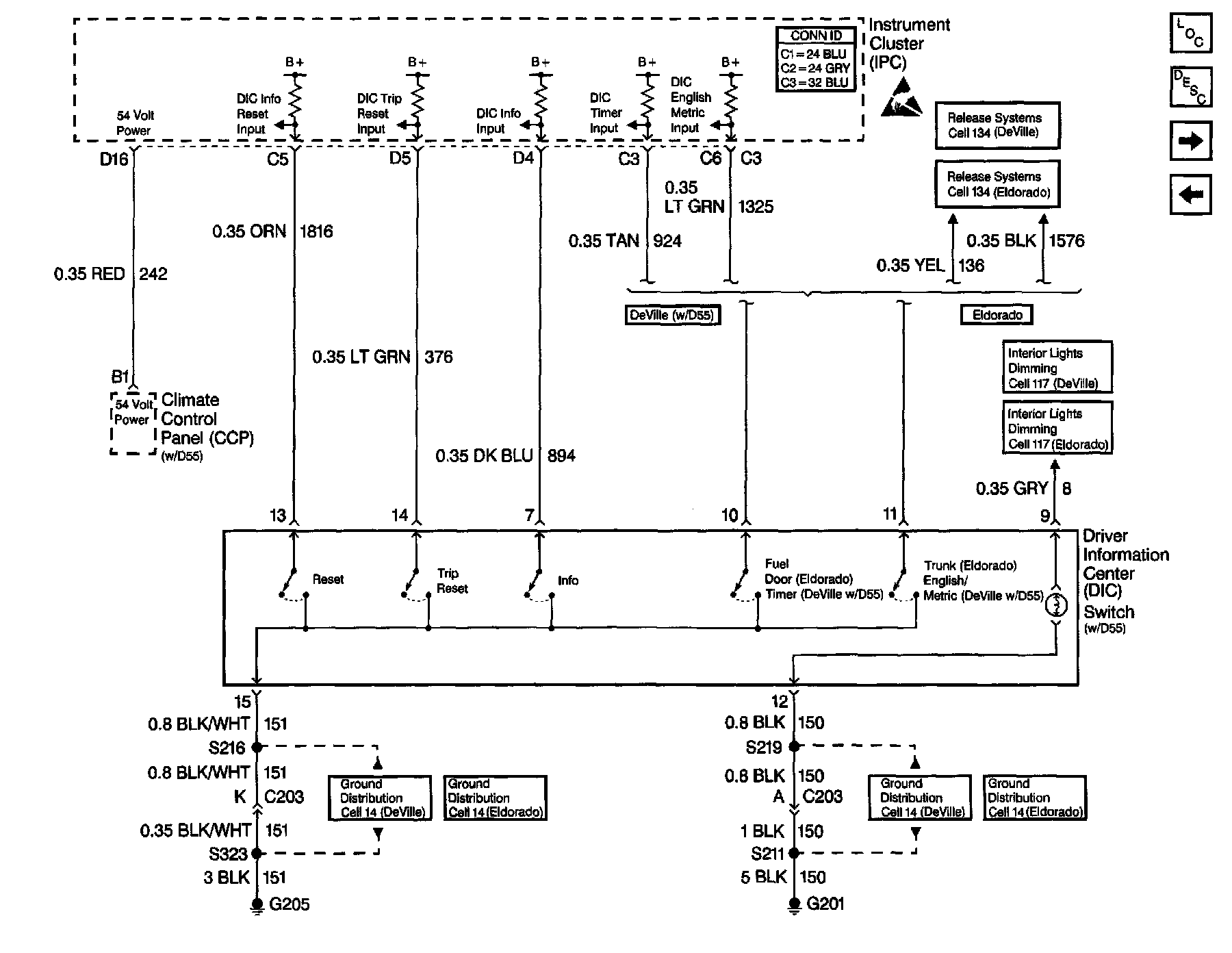

Driver Information Center Switch (With D55)

Instrument Cluster: Analog Schematics - Driver Information Center Switch (With D55):
