Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster Analog Schematics >> Door Jamb Switches

Door Jamb Switches

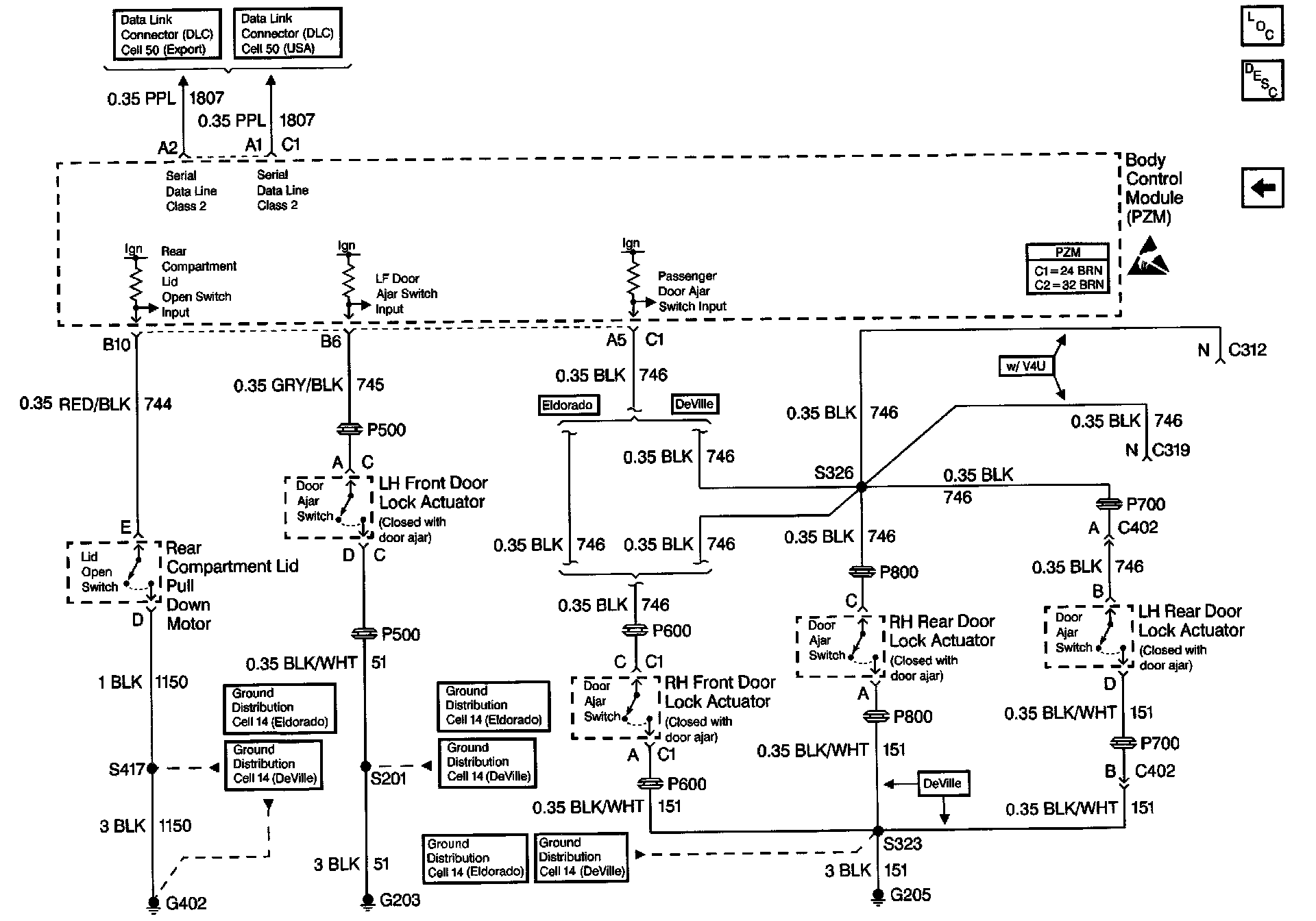

Instrument Cluster: Analog Schematics - Door Jamb Switches:
