Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> Defogger Schematics

Defogger Schematics

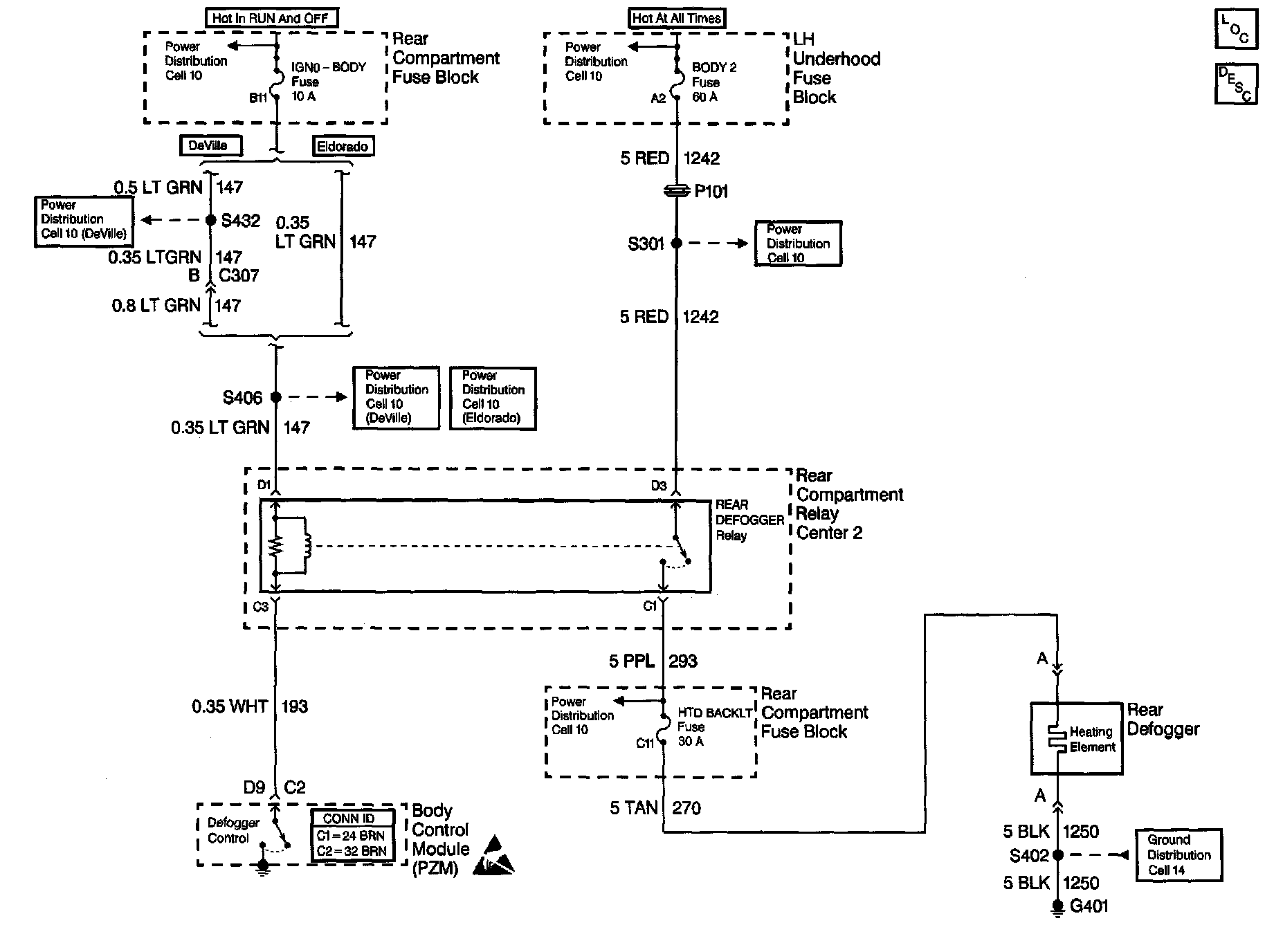

Defogger Schematics: HVAC Rear Defogger Schematics:
