Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body and Frame >> Seats >> Power Seats >> LH Seat Switch Switch W/O A45

LH Seat Switch Switch W/O A45

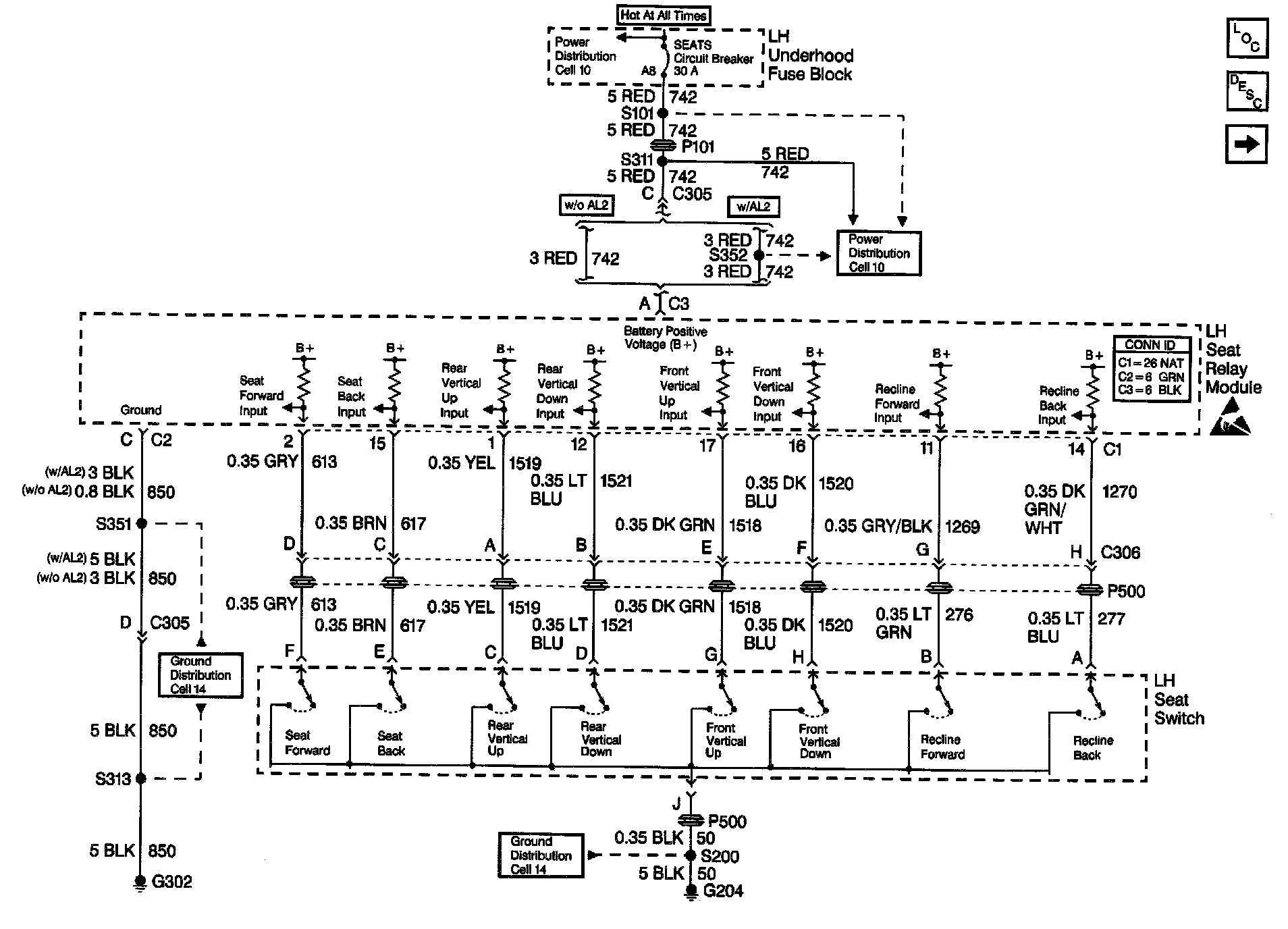

Power Seats Schematics (DeVille): LH Seat Switch Switch W/O A45:
